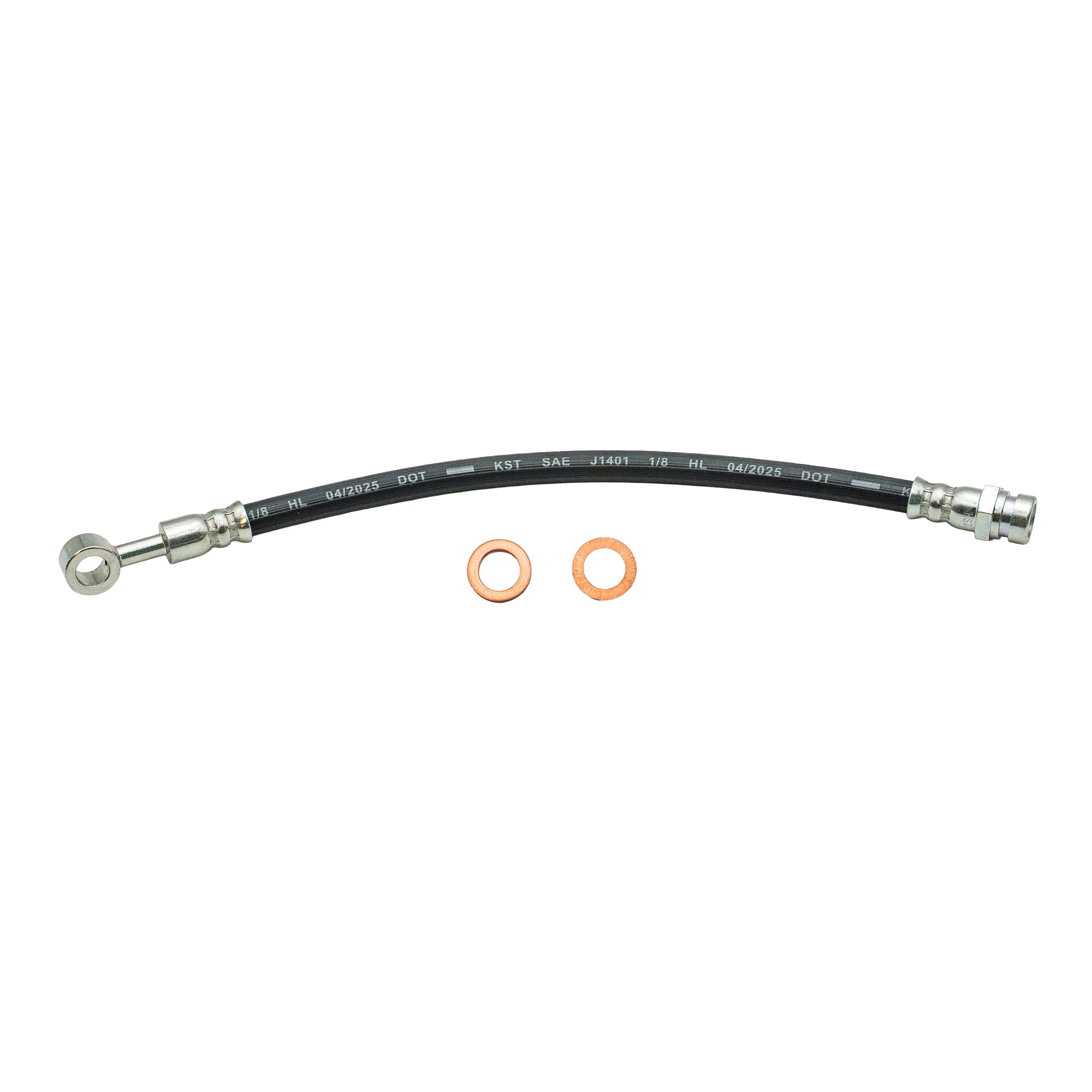

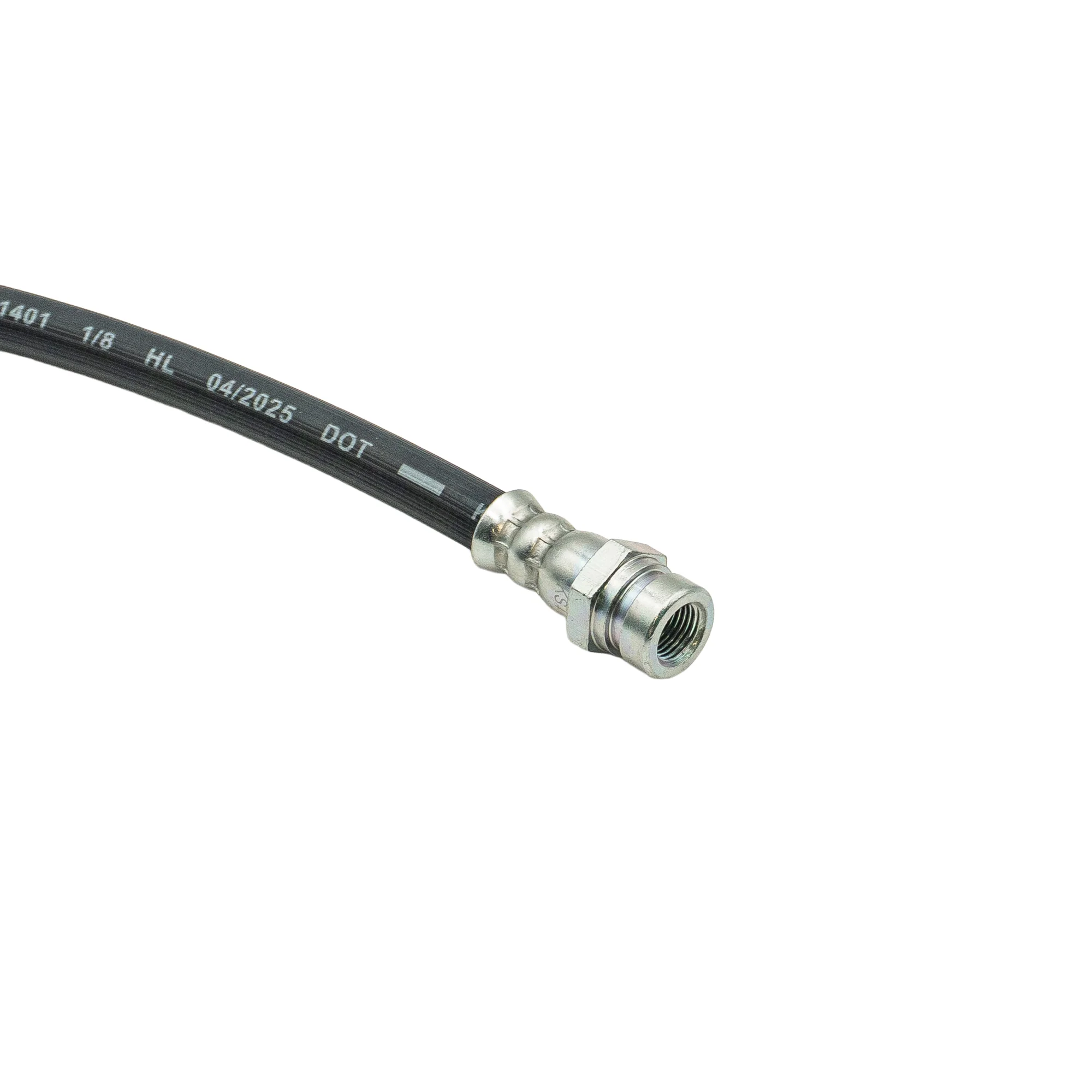

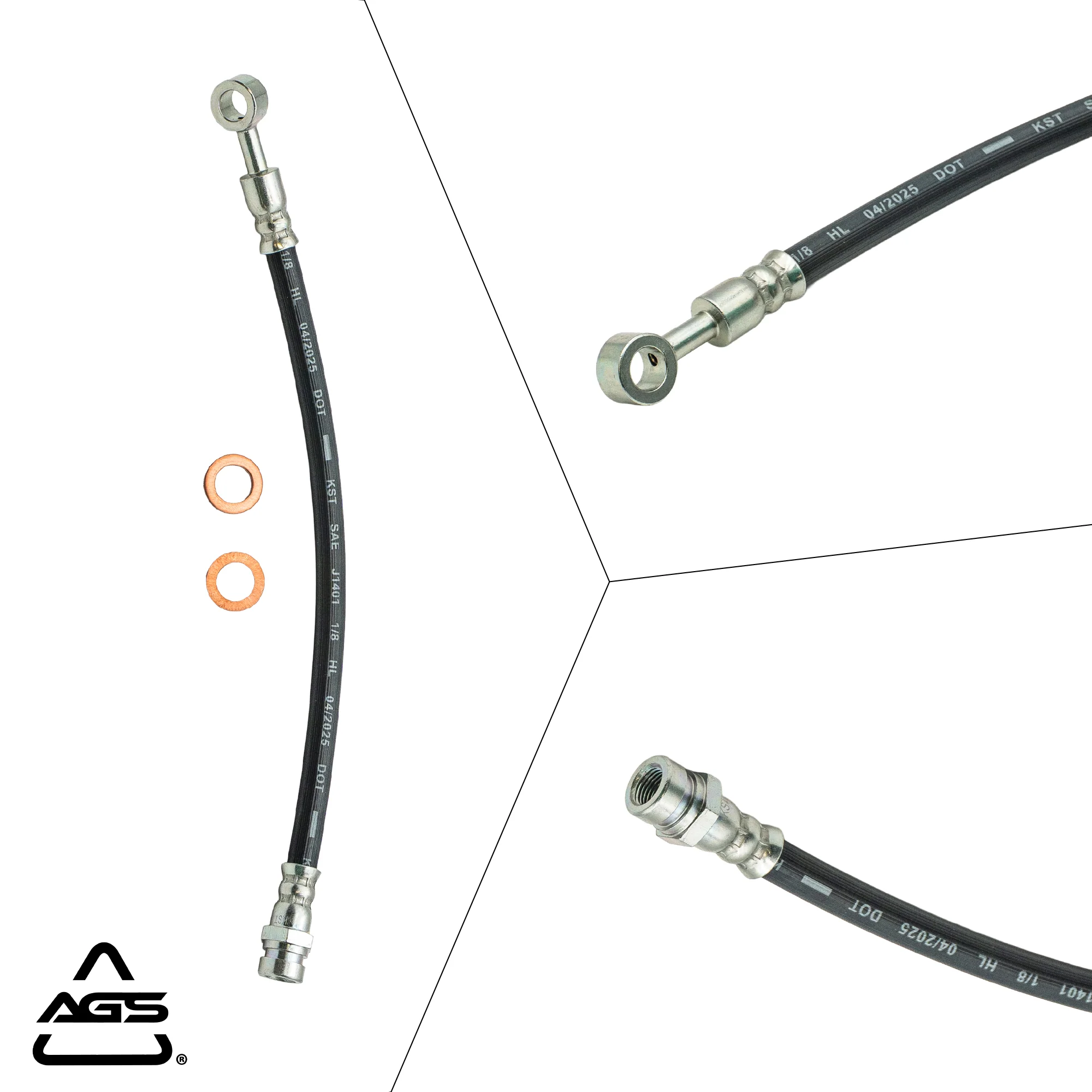

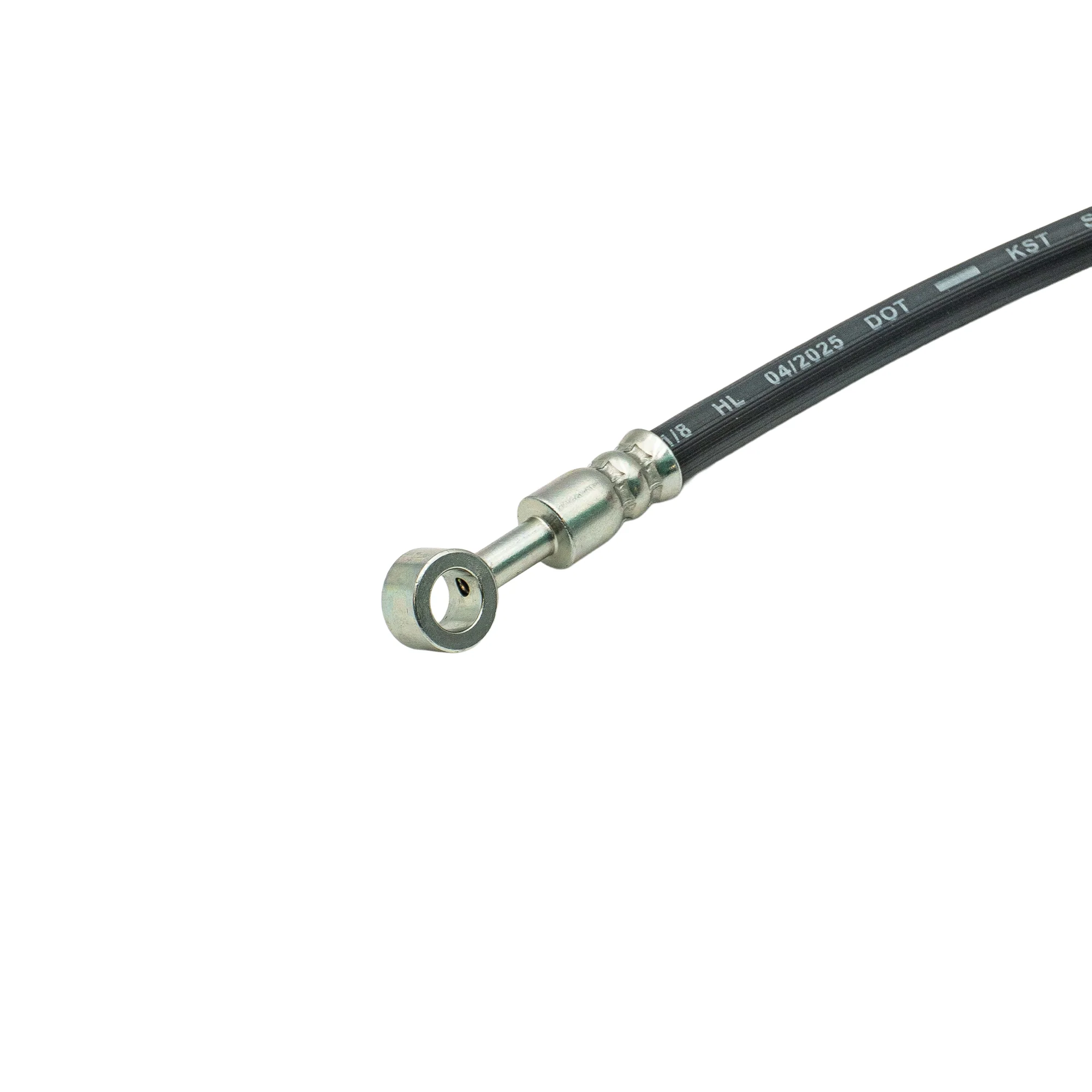

2006-2013 Hyundai Azera & Sonata Rear Rubber Brake Hose | AGS-KT40512
The AGS AGS-KT40512 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for the 2006-2013 Hyundai Azera and 2006-2010 Hyundai Sonata, Rear position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2006 | Hyundai | Azera | — | Rear Left |
| 2006 | Hyundai | Azera | — | Rear Right |
| 2007 | Hyundai | Azera | — | Rear Left |
| 2007 | Hyundai | Azera | — | Rear Right |
| 2008 | Hyundai | Azera | — | Rear Right |
| 2008 | Hyundai | Azera | — | Rear Left |
| 2009 | Hyundai | Azera | — | Rear Left |
| 2009 | Hyundai | Azera | — | Rear Right |
| 2010 | Hyundai | Azera | — | Rear Right |
| 2010 | Hyundai | Azera | — | Rear Left |
| 2011 | Hyundai | Azera | — | Rear Left |
| 2011 | Hyundai | Azera | — | Rear Right |
| 2012 | Hyundai | Azera | — | Rear Right |
| 2012 | Hyundai | Azera | — | Rear Left |
| 2013 | Hyundai | Azera | — | Rear Right |
| 2013 | Hyundai | Azera | — | Rear Left |
| 2006 | Hyundai | Sonata | — | Rear Left |
| 2006 | Hyundai | Sonata | — | Rear Right |
| 2007 | Hyundai | Sonata | — | Rear Right |
| 2007 | Hyundai | Sonata | — | Rear Left |
| 2008 | Hyundai | Sonata | — | Rear Right |
| 2008 | Hyundai | Sonata | — | Rear Left |
| 2009 | Hyundai | Sonata | — | Rear Right |
| 2009 | Hyundai | Sonata | — | Rear Left |
| 2010 | Hyundai | Sonata | — | Rear Left |
| 2010 | Hyundai | Sonata | — | Rear Right |
Cross-Reference / Replaces These Part Numbers
The AGS-KT40512 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H620964 |
| Raybestos | BH383309 |
| Sunsong | 2202853 |
| Wagner | BH144093 | F144093 |
| Centric Parts | 150.51319 |
| NAPA BRAKES | UP609973 |
| Alltech Automotive | 612649 |
| DFC Brake Hoses - Archived | 350-03105 |
| Hyundai | 587440A000 | 587443K000 | 587443L000 | 587443L001 |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 12.3125 |
| Overall Length (mm) | 313 |
| Axis 1 Length (in) | 12.38 |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 10 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Crush Washers Included | Yes |
| Mounting Bracket Included | No |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
