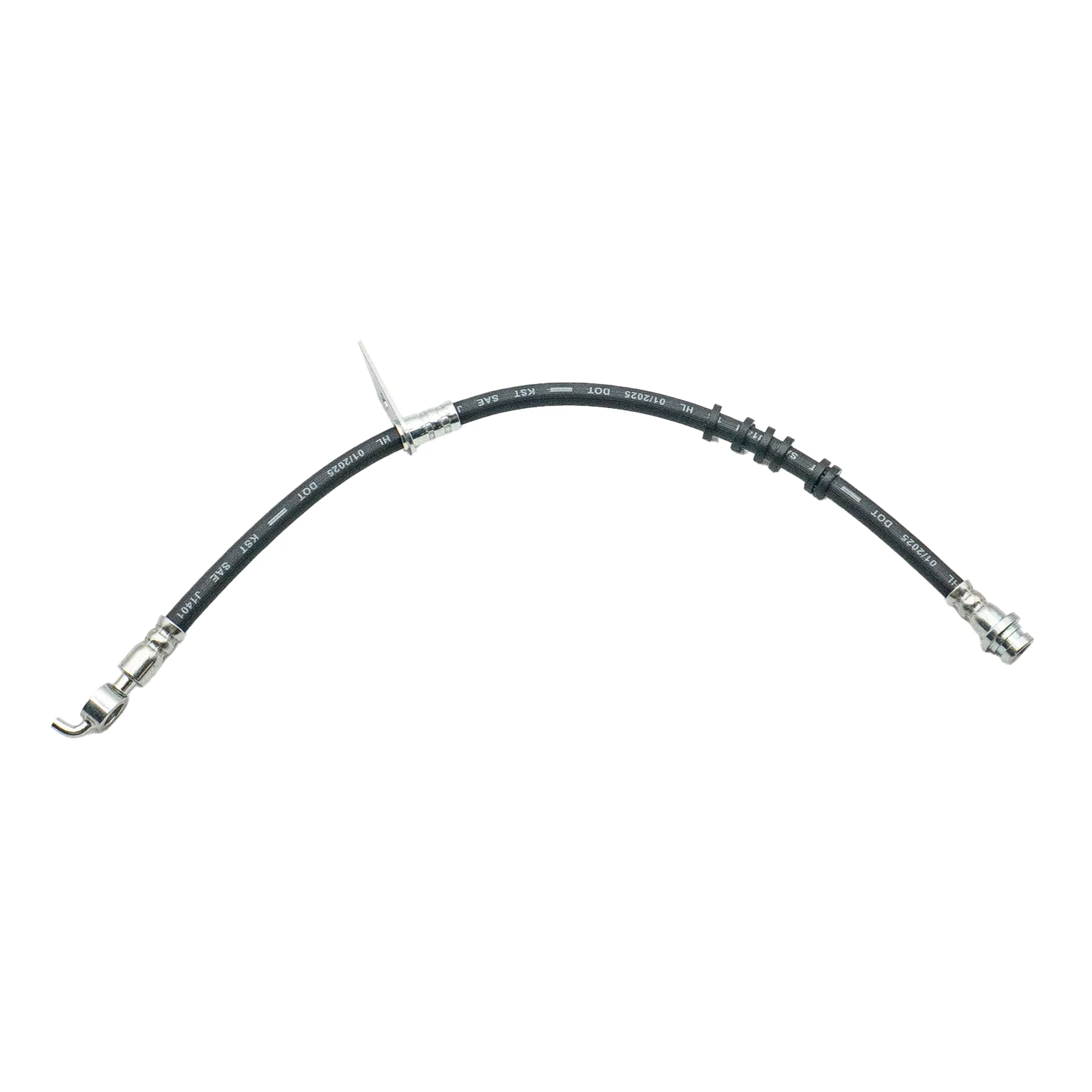

2013-2020 Ford Fusion / Lincoln MKZ Front Right Rubber Brake Hose | AGS-KT60086
The AGS AGS-KT60086 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for the 2013-2020 Ford Fusion and 2013-2020 Lincoln MKZ, Front Right position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation

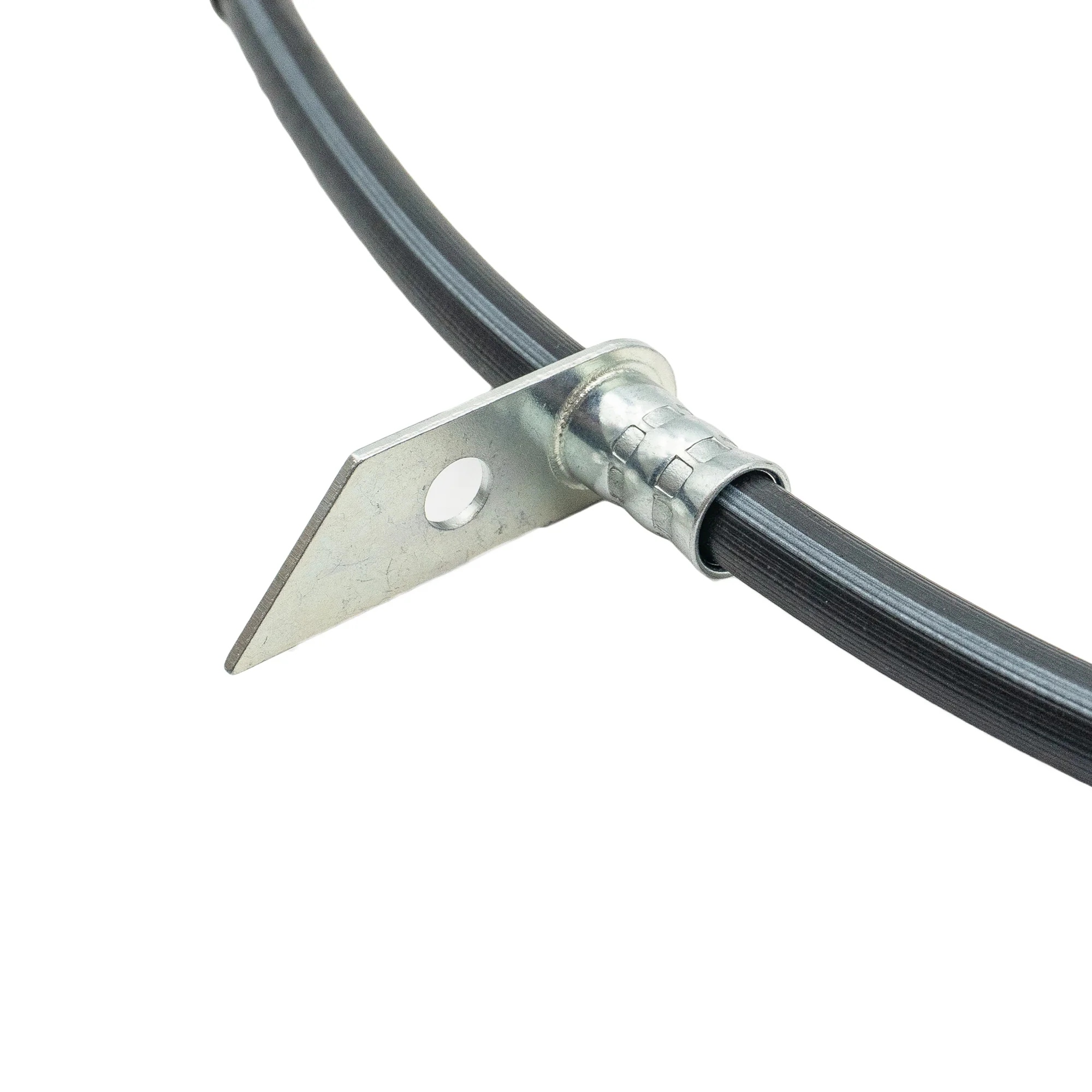

- Mounting bracket included
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2013 | Ford | Fusion | — | Front Right |
| 2014 | Ford | Fusion | — | Front Right |
| 2015 | Ford | Fusion | — | Front Right |
| 2016 | Ford | Fusion | — | Front Right |
| 2017 | Ford | Fusion | — | Front Right |
| 2018 | Ford | Fusion | — | Front Right |
| 2019 | Ford | Fusion | — | Front Right |
| 2020 | Ford | Fusion | — | Front Right |
| 2013 | Lincoln | MKZ | — | Front Right |
| 2014 | Lincoln | MKZ | — | Front Right |
| 2015 | Lincoln | MKZ | — | Front Right |
| 2016 | Lincoln | MKZ | — | Front Right |
| 2017 | Lincoln | MKZ | — | Front Right |
| 2018 | Lincoln | MKZ | — | Front Right |
| 2019 | Lincoln | MKZ | — | Front Right |
| 2020 | Lincoln | MKZ | — | Front Right |
Cross-Reference / Replaces These Part Numbers
The AGS-KT60086 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H622206 |
| Raybestos | BH383791 |
| Sunsong | 2205974 | 2207754 |
| Wagner | BH144621 |
| Centric Parts | 150.61137 |
| NAPA BRAKES | UP683795 |
| Alltech Automotive | 614258 |
| DFC Brake Hoses - Archived | 350-54099 |
| Ford | DG9Z2078A |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Inside Diameter (in) | 1/8 |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 18.9 |
| End 1 Fitting Material | Treated Steel |

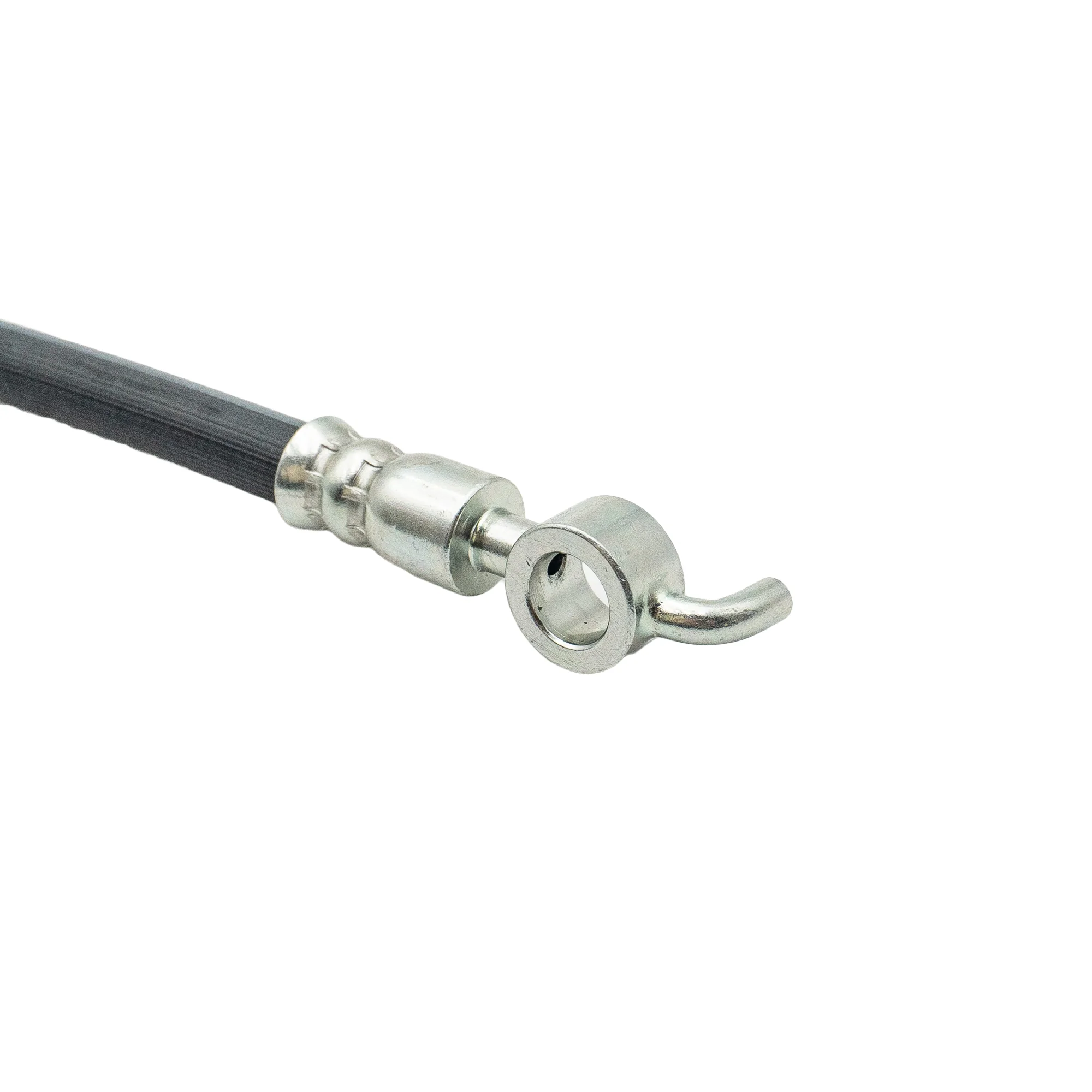

| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 10 |
| End 2 Fitting Material | Treated Steel |

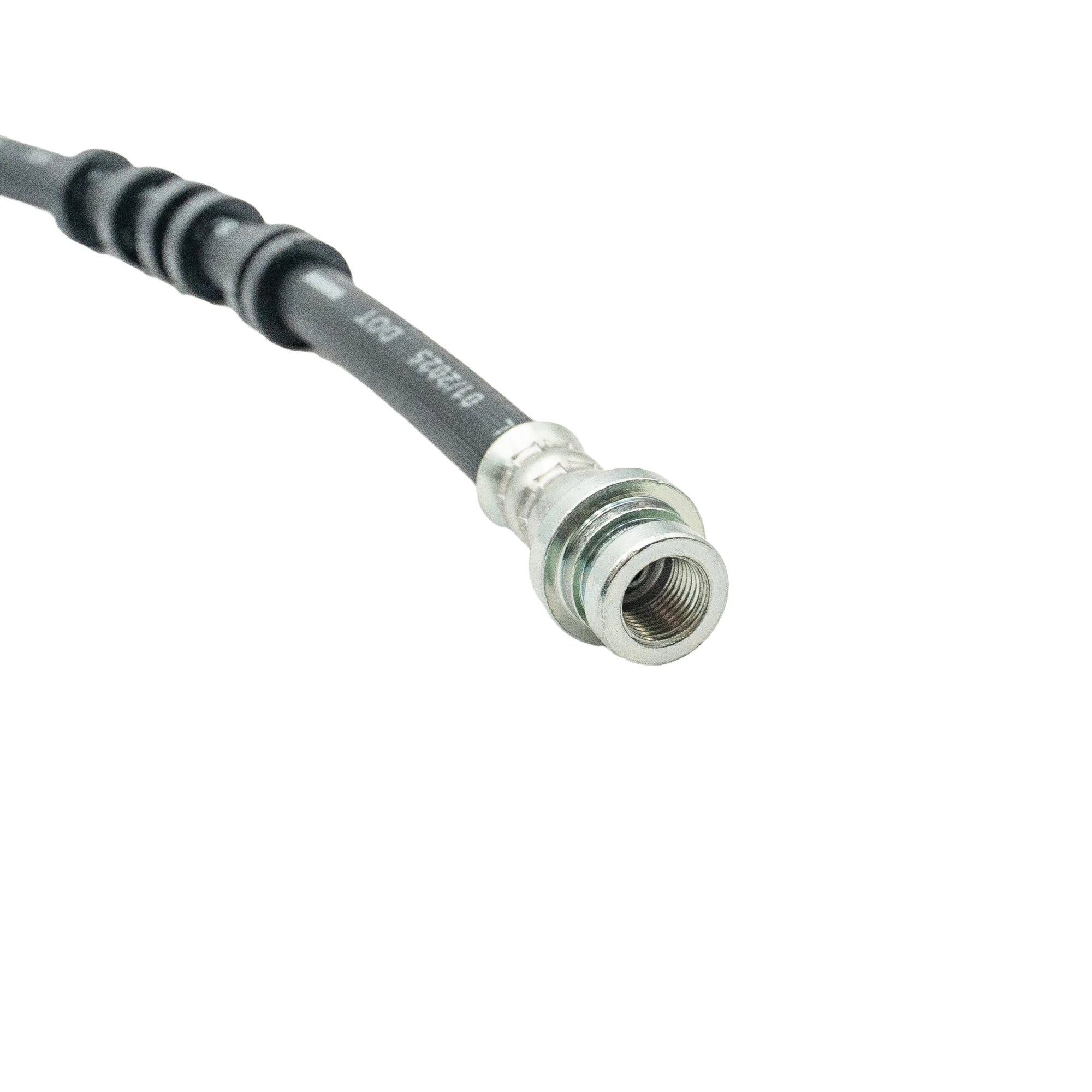

| End 2 Fitting Type | Female |
| End 2 Thread Size (mm) | M10x1 |
| Crush Washers Included | Yes |
| Mounting Bracket Included | Yes |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
