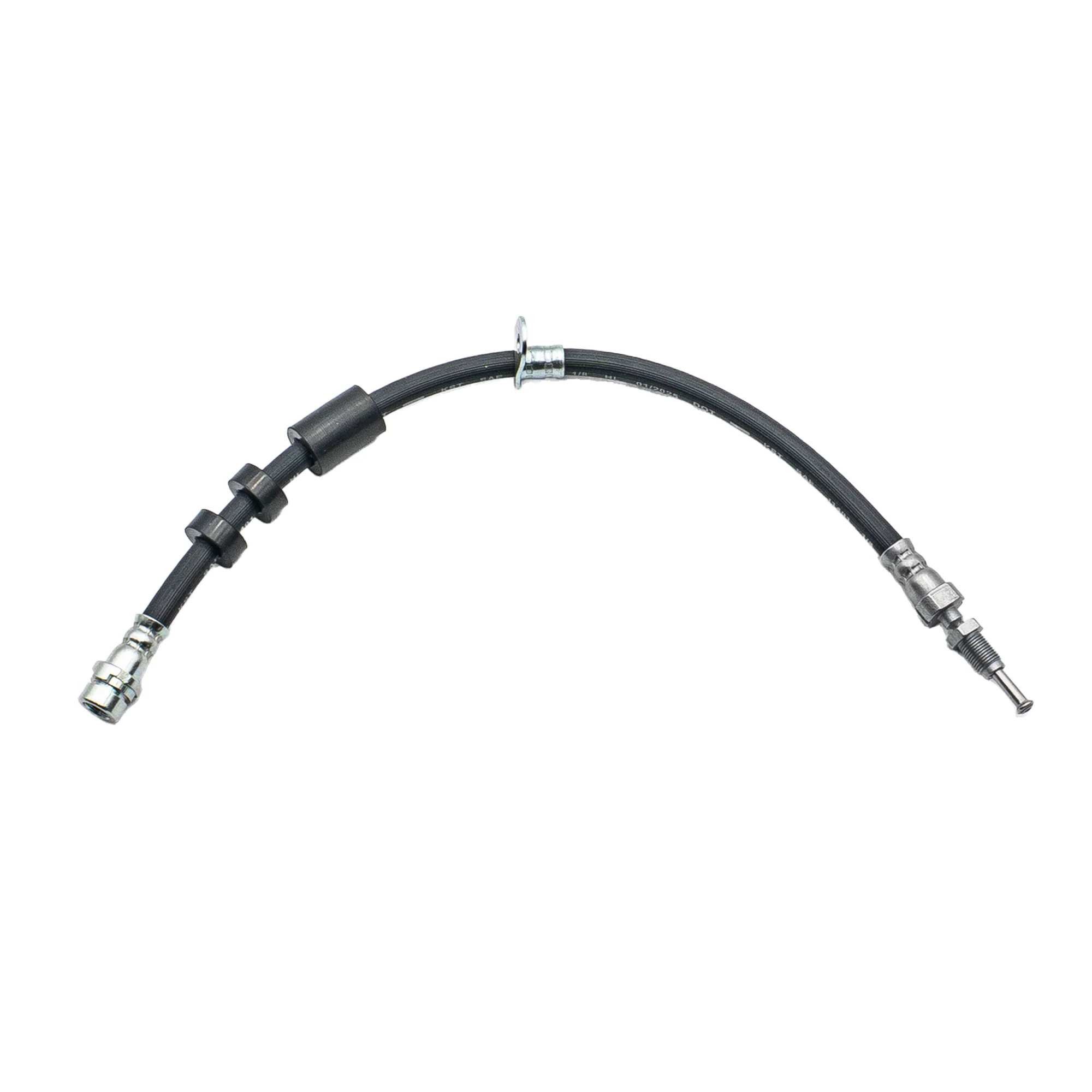

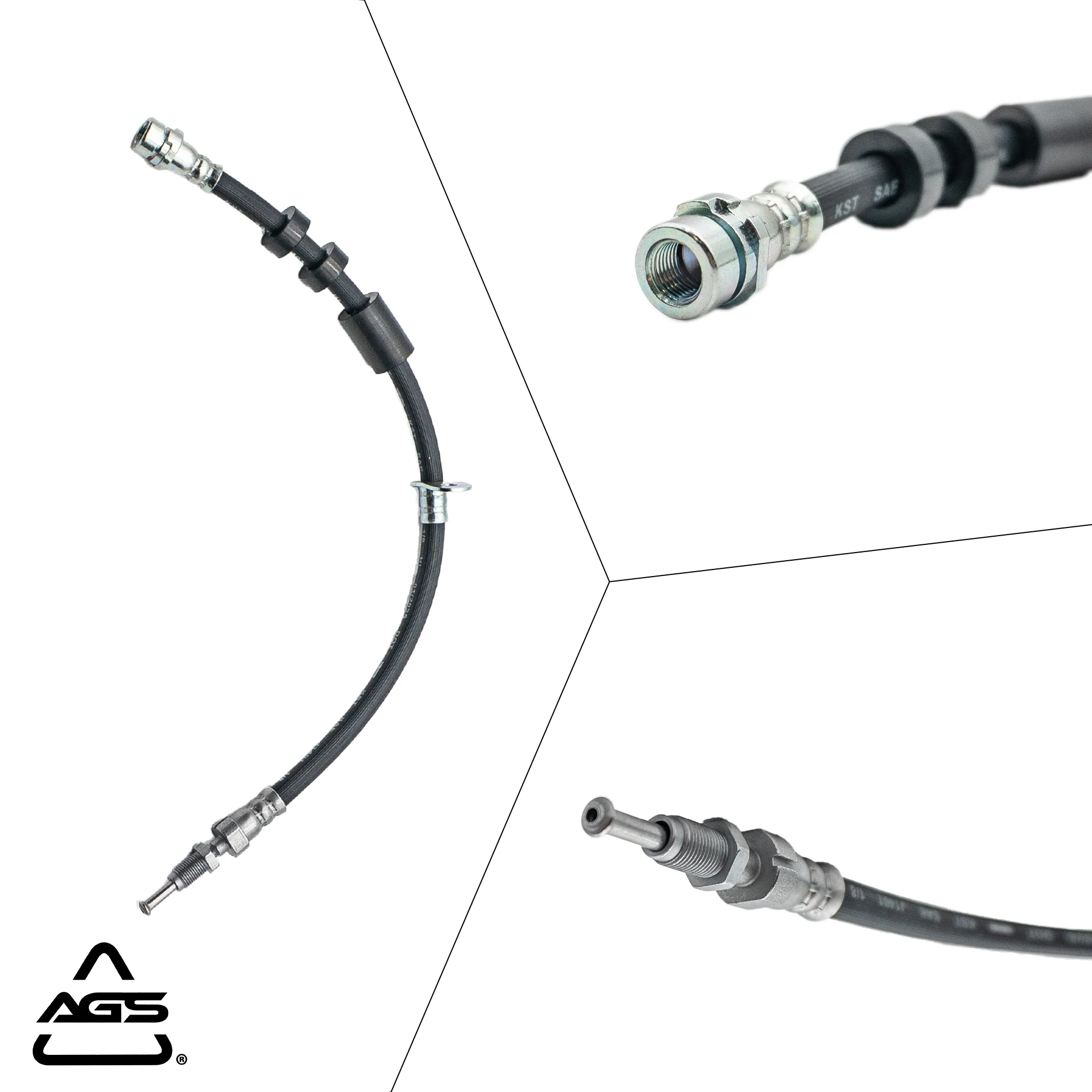

2012-2023 Ford C-Max, Ford Focus +1 More Front Rubber Brake Hose | AGS-KT60480
The AGS AGS-KT60480 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 3 vehicle applications including the Ford C-Max and Ford Focus, Front position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards

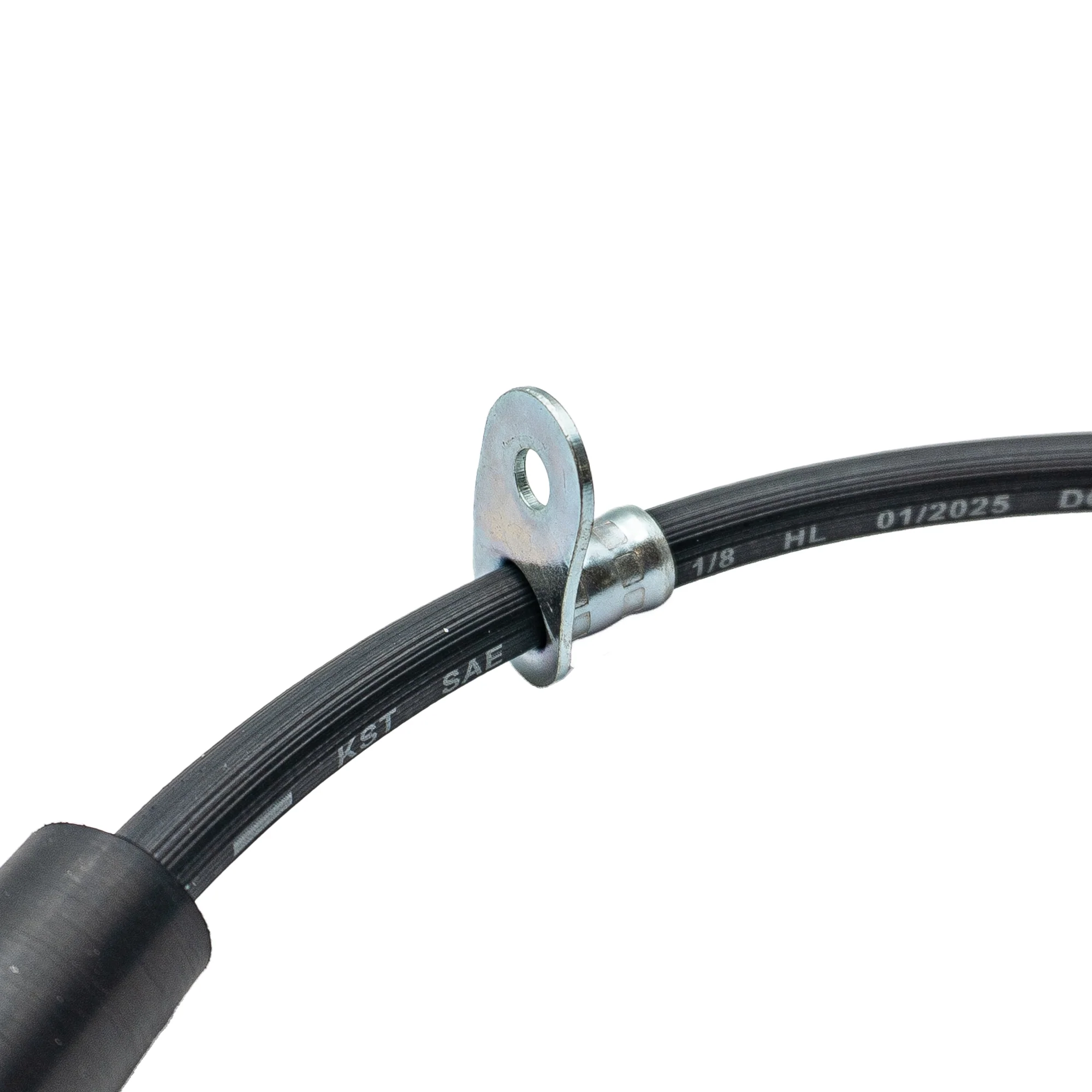

- Mounting bracket included
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2013 | Ford | C-Max | — | Front Right |
| 2013 | Ford | C-Max | — | Front Left |
| 2014 | Ford | C-Max | — | Front Left |
| 2014 | Ford | C-Max | — | Front Right |
| 2015 | Ford | C-Max | — | Front Right |
| 2015 | Ford | C-Max | — | Front Left |
| 2016 | Ford | C-Max | — | Front Right |
| 2016 | Ford | C-Max | — | Front Left |
| 2017 | Ford | C-Max | — | Front Right |
| 2017 | Ford | C-Max | — | Front Left |
| 2018 | Ford | C-Max | — | Front Left |
| 2018 | Ford | C-Max | — | Front Right |
| 2012 | Ford | Focus | — | Front Left |
| 2012 | Ford | Focus | — | Front Right |
| 2013 | Ford | Focus | — | Front Left |
| 2013 | Ford | Focus | — | Front Right |
| 2014 | Ford | Focus | — | Front Right |
| 2014 | Ford | Focus | — | Front Left |
| 2015 | Ford | Focus | — | Front Left |
| 2015 | Ford | Focus | — | Front Right |
| 2016 | Ford | Focus | — | Front Right |
| 2016 | Ford | Focus | — | Front Left |
| 2017 | Ford | Focus | — | Front Left |
| 2017 | Ford | Focus | — | Front Right |
| 2018 | Ford | Focus | — | Front Right |
| 2018 | Ford | Focus | — | Front Left |
| 2013 | Ford | Transit Connect | — | Front Left |
| 2013 | Ford | Transit Connect | — | Front Right |
| 2014 | Ford | Transit Connect | — | Front Left |
| 2014 | Ford | Transit Connect | — | Front Right |
| 2015 | Ford | Transit Connect | — | Front Left |
| 2015 | Ford | Transit Connect | — | Front Right |
| 2016 | Ford | Transit Connect | — | Front Left |
| 2016 | Ford | Transit Connect | — | Front Right |
| 2017 | Ford | Transit Connect | — | Front Right |
| 2017 | Ford | Transit Connect | — | Front Left |
| 2018 | Ford | Transit Connect | — | Front Right |
| 2018 | Ford | Transit Connect | — | Front Left |
| 2019 | Ford | Transit Connect | — | Front Right |
| 2019 | Ford | Transit Connect | — | Front Left |
| 2020 | Ford | Transit Connect | — | Front Right |
| 2020 | Ford | Transit Connect | — | Front Left |
| 2021 | Ford | Transit Connect | — | Front Right |
| 2021 | Ford | Transit Connect | — | Front Left |
| 2022 | Ford | Transit Connect | — | Front Right |
| 2022 | Ford | Transit Connect | — | Front Left |
| 2023 | Ford | Transit Connect | — | Front Right |
| 2023 | Ford | Transit Connect | — | Front Left |
Cross-Reference / Replaces These Part Numbers
The AGS-KT60480 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H621915 |
| Raybestos | BH383714 |
| Sunsong | 2206134 |
| Wagner | BH144682 | F144682 |
| Centric Parts | 150.61133 |
| NAPA BRAKES | UP683280 |
| Alltech Automotive | 614316 |
| DFC Brake Hoses - Archived | 350-54095 |
| Ford | CV6Z2078A |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 17.9375 |
| Overall Length (mm) | 456 |
| Axis 1 Length (in) | 18 |

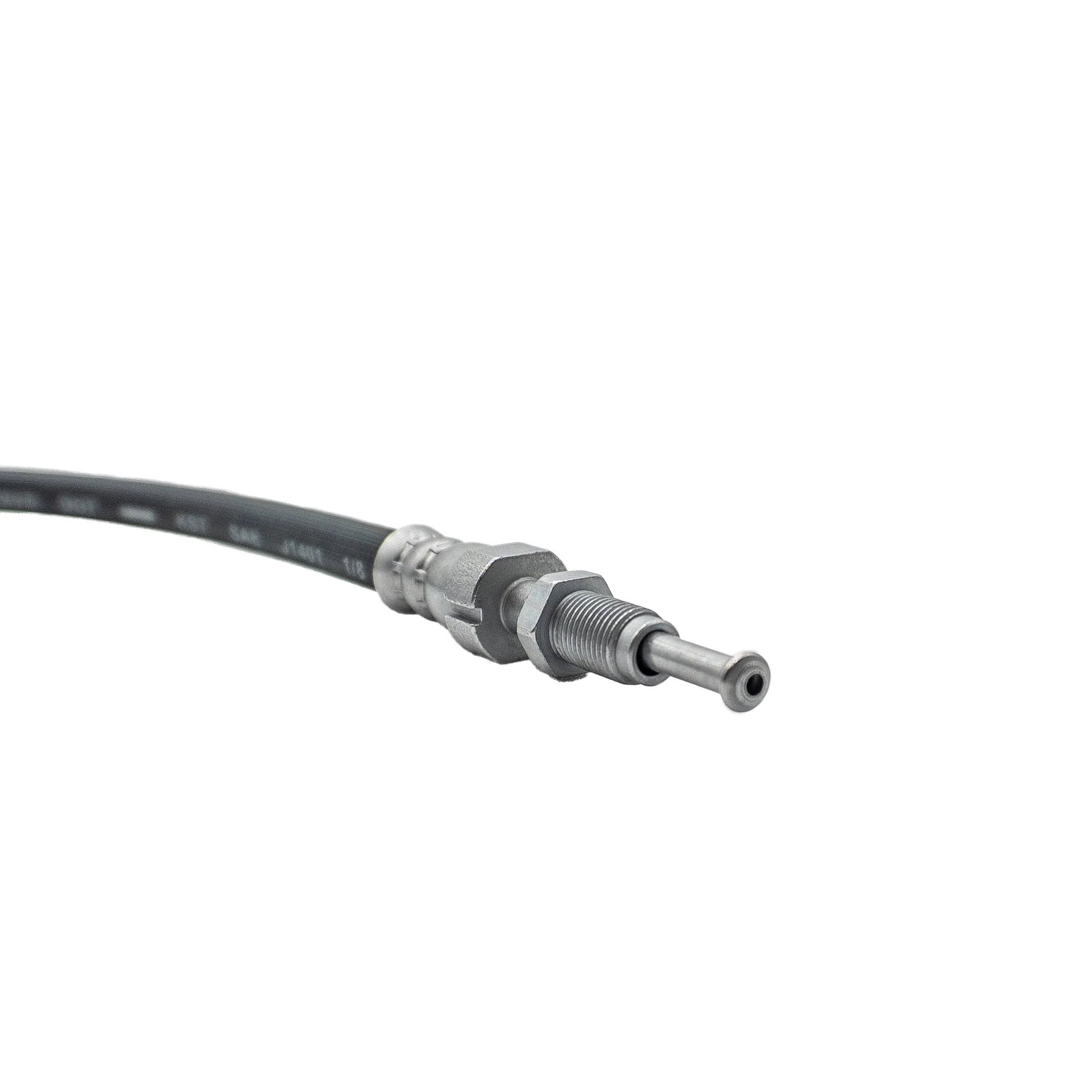

| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Male |
| End 1 Thread Size (mm) | M10x1 |

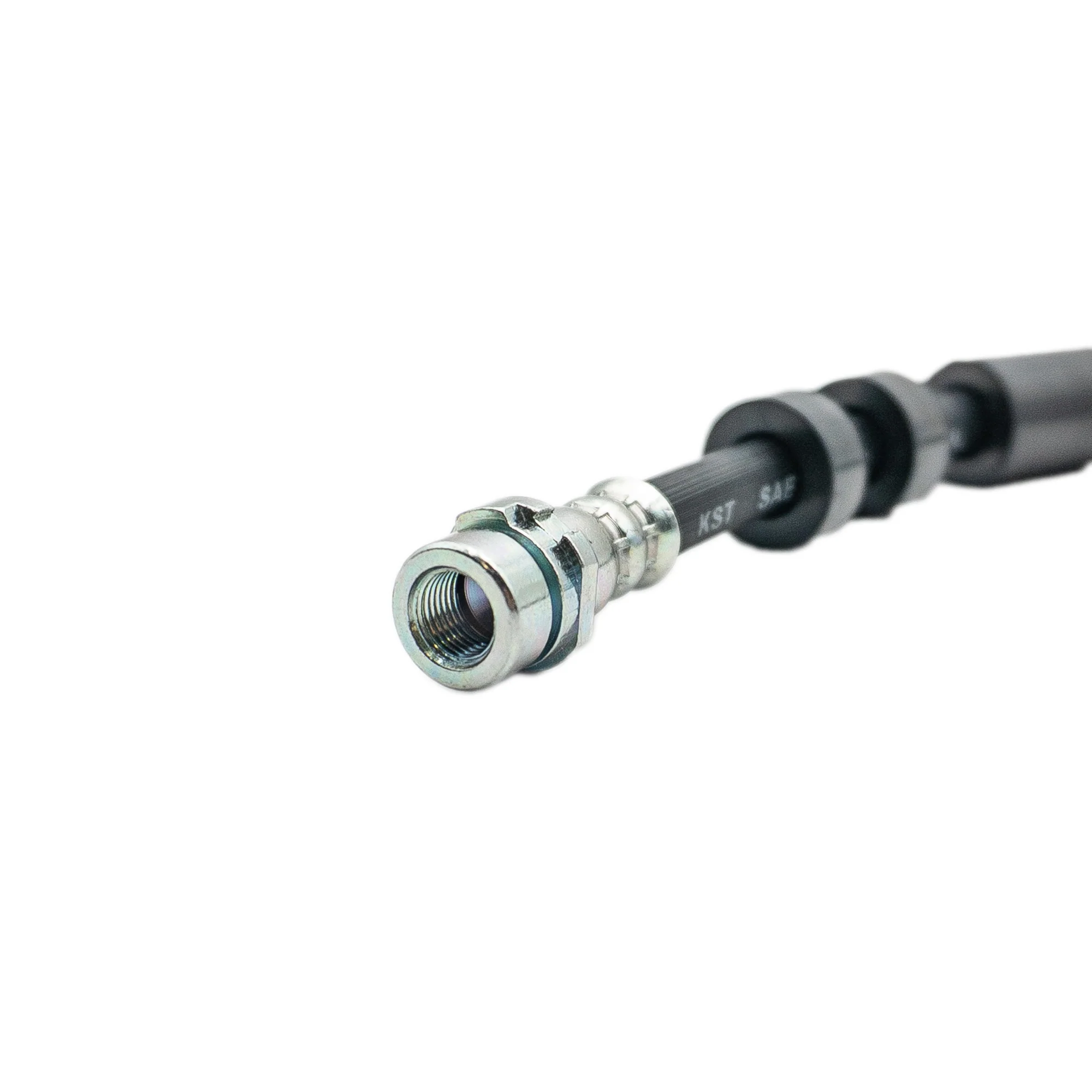

| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Crush Washers Included | No |
| Mounting Bracket Included | Yes |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
