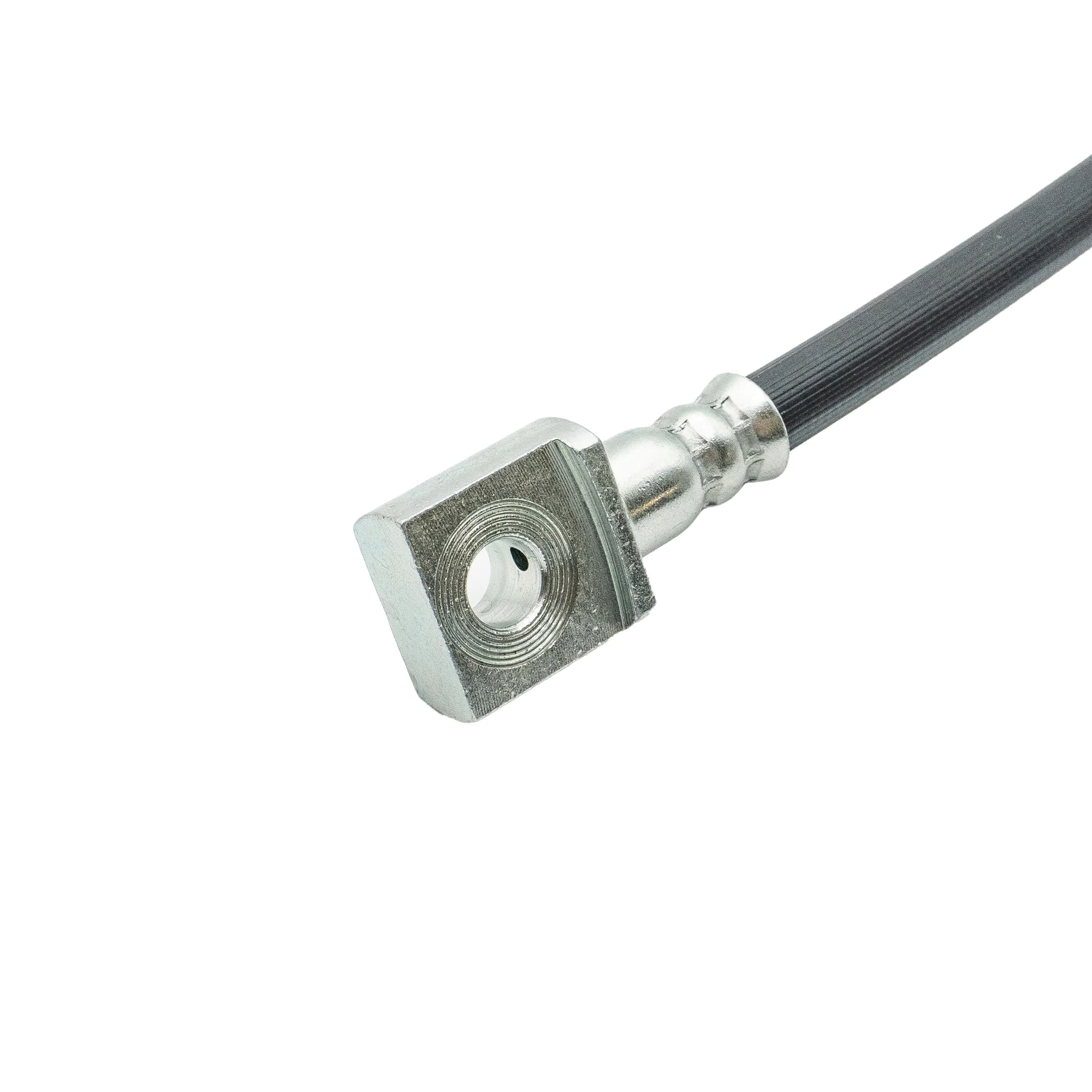

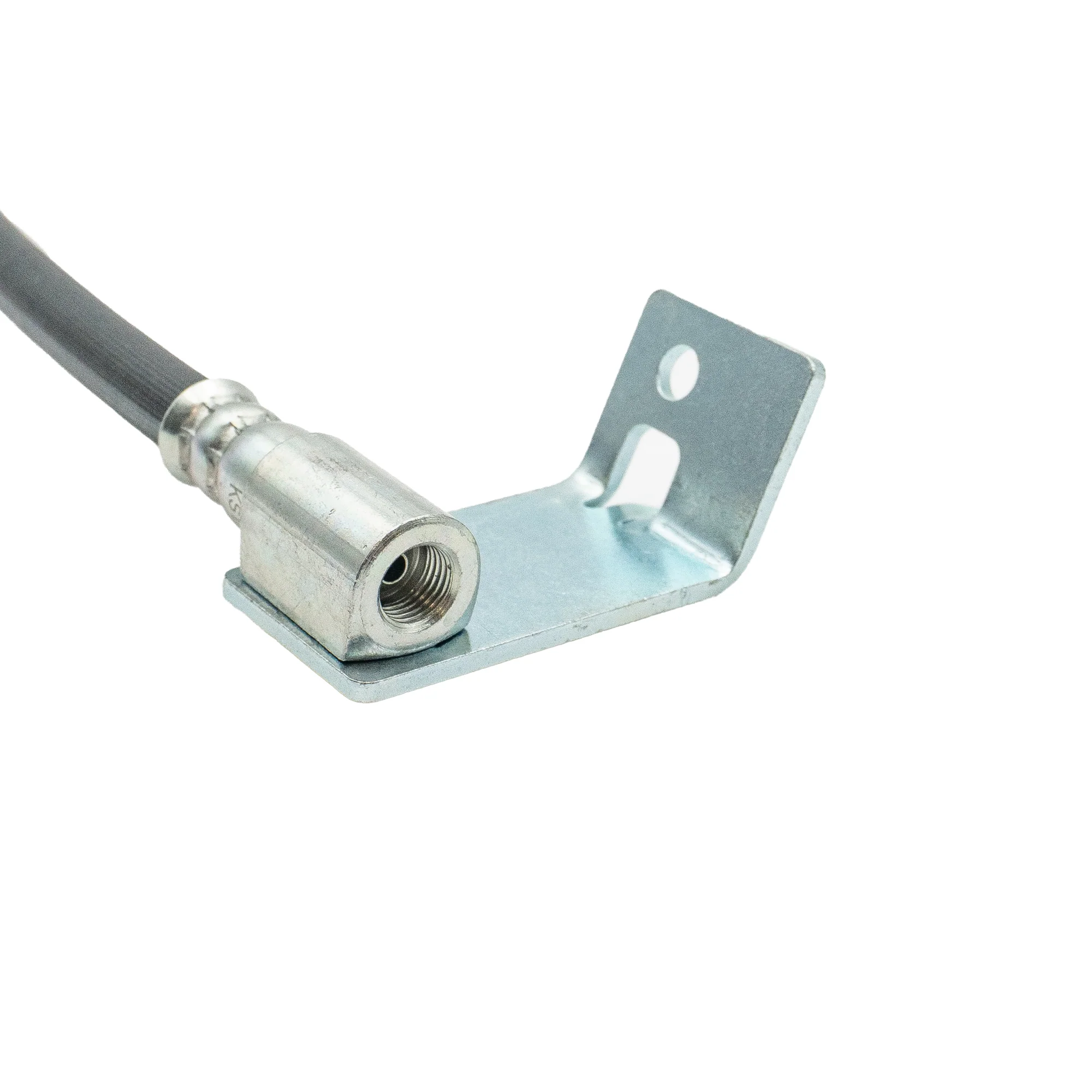

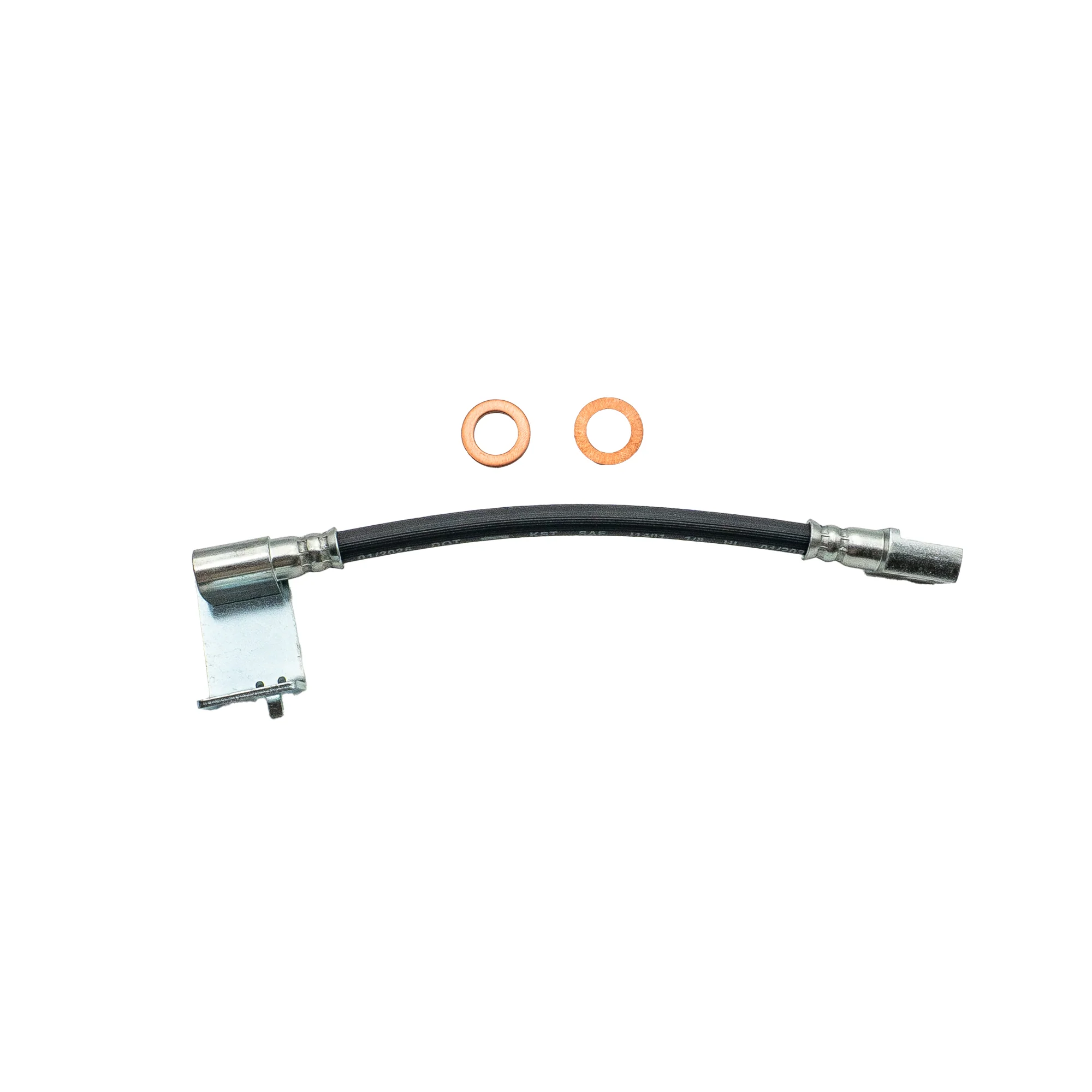

2005-2010 Ford F-250, Ford F-250 Super Duty +2 More Rear Left Rubber Brake Hose | AGS-KT60169M
2005-2010 Ford F-250, Ford F-250 Super Duty +2 More Rear Left Rubber Brake Hose | AGS-KT60169M
The AGS AGS-KT60169M is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 4 vehicle applications including the Ford F-250 and Ford F-250 Super Duty, Rear Left position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation
- Mounting bracket included
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2005 | Ford | F-250 | — | Rear Left |
| 2006 | Ford | F-250 | — | Rear Left |
| 2007 | Ford | F-250 | — | Rear Left |
| 2008 | Ford | F-250 | — | Rear Left |
| 2009 | Ford | F-250 | — | Rear Left |
| 2005 | Ford | F-250 Super Duty | — | Rear Left |
| 2006 | Ford | F-250 Super Duty | — | Rear Left |
| 2007 | Ford | F-250 Super Duty | — | Rear Left |
| 2008 | Ford | F-250 Super Duty | — | Rear Left |
| 2009 | Ford | F-250 Super Duty | — | Rear Left |
| 2010 | Ford | F-250 Super Duty | — | Rear Left |
| 2005 | Ford | F-350 Super Duty | — | Rear Left |
| 2006 | Ford | F-350 Super Duty | — | Rear Left |
| 2007 | Ford | F-350 Super Duty | — | Rear Left |
| 2008 | Ford | F-350 Super Duty | — | Rear Left |
| 2009 | Ford | F-350 Super Duty | — | Rear Left |
| 2010 | Ford | F-350 Super Duty | — | Rear Left |
| 2009 | Ford | F-450 Super Duty | — | Rear Left |
Cross-Reference / Replaces These Part Numbers
The AGS-KT60169M is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H620979 |
| Raybestos | BH382889 |
| Sunsong | 2201972 | 2202976 | 2202796 |
| Wagner | BH143483 | BH143970 | F143483 | F143970 |
| Centric Parts | 150.65422 | 150.65458 |
| NAPA BRAKES | UP609988 |
| Alltech Automotive | 612785 |
| DFC Brake Hoses - Archived | 350-54597 |
| Ford | 5C3Z2268AB | 5C3Z2268AC | 5C3Z2268ED | 5C3Z2268EE |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Inside Diameter (in) | 1/8 |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 9.69 |
| Axis 1 Length (in) | 8.75 |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 9.6 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Crush Washers Included | Yes |
| Mounting Bracket Included | Yes |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
