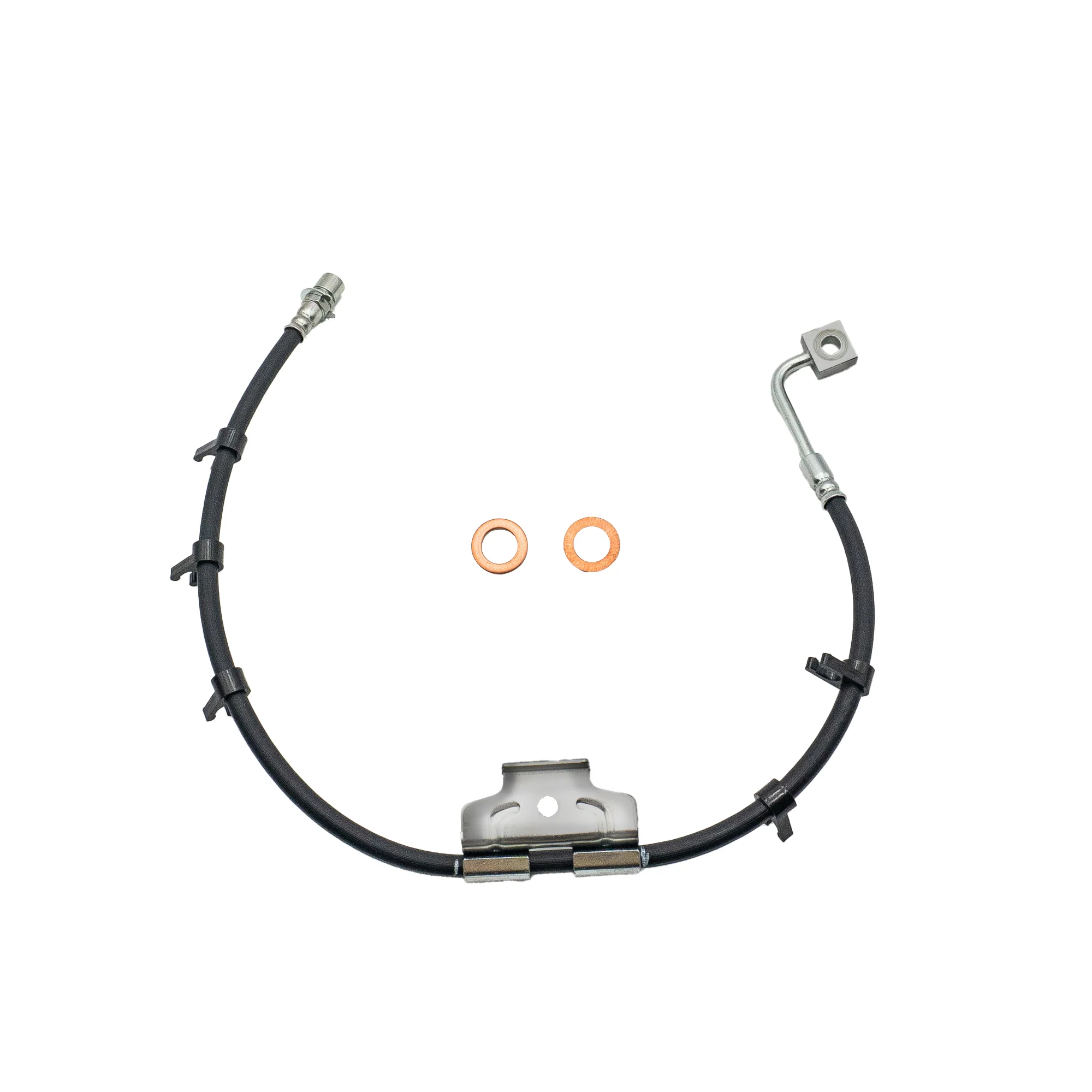

2003-2016 Dodge Ram 2500, Dodge Ram 3500 +3 More Front Rubber Brake Hose | AGS-KT80306N
The AGS AGS-KT80306N is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 5 vehicle applications including the Dodge Ram 2500 and Dodge Ram 3500, Front position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation

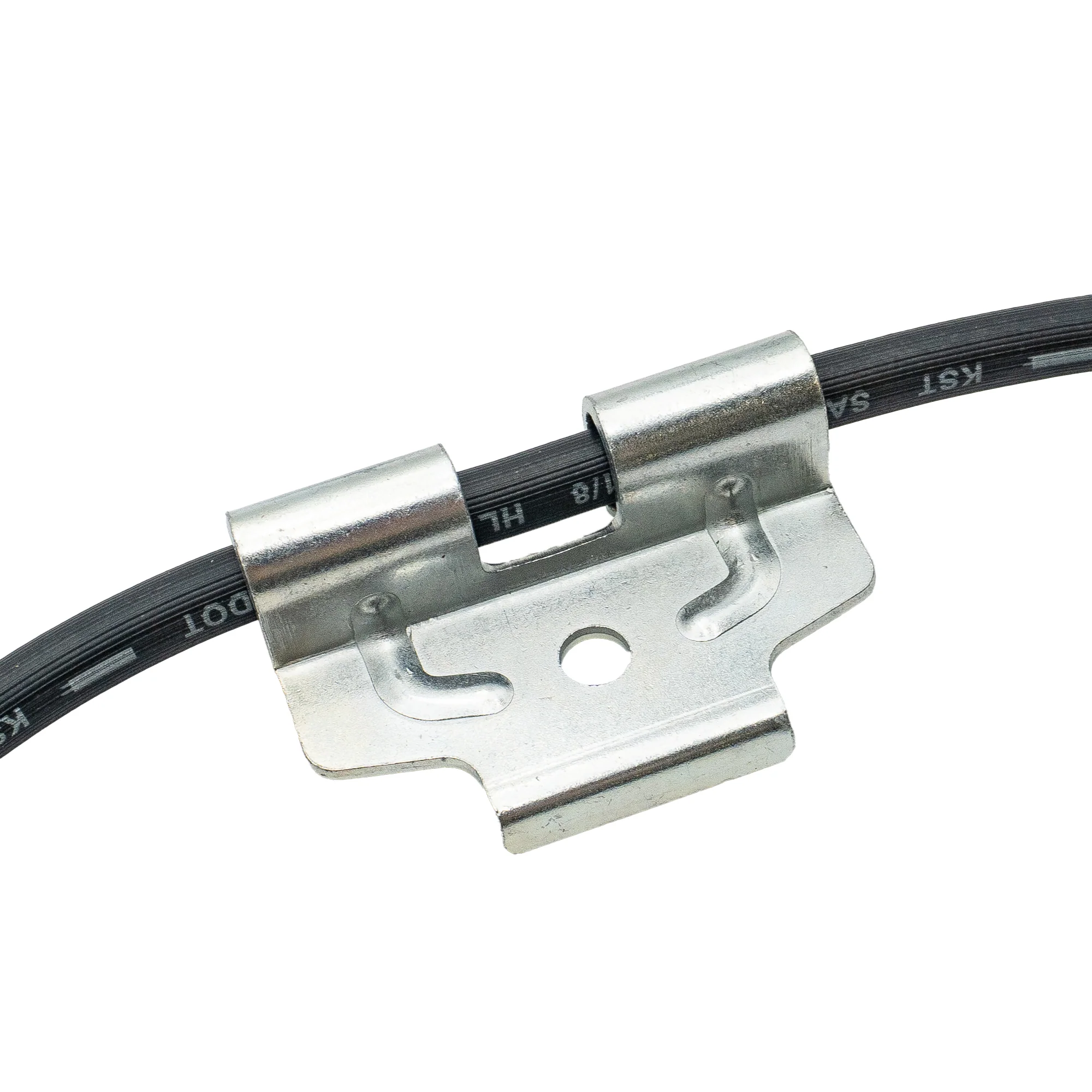

- Mounting bracket included
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2003 | Dodge | Ram 2500 | — | Front Right |
| 2004 | Dodge | Ram 2500 | — | Front Right |
| 2005 | Dodge | Ram 2500 | — | Front Right |
| 2006 | Dodge | Ram 2500 | — | Front Right |
| 2007 | Dodge | Ram 2500 | — | Front Right |
| 2008 | Dodge | Ram 2500 | — | Front Right |
| 2009 | Dodge | Ram 2500 | — | Front Right |
| 2010 | Dodge | Ram 2500 | — | Front Right |
| 2003 | Dodge | Ram 3500 | — | Front Right |
| 2004 | Dodge | Ram 3500 | — | Front Right |
| 2005 | Dodge | Ram 3500 | — | Front Right |
| 2006 | Dodge | Ram 3500 | — | Front Right |
| 2007 | Dodge | Ram 3500 | — | Front Right |
| 2008 | Dodge | Ram 3500 | — | Front Right |
| 2009 | Dodge | Ram 3500 | — | Front Right |
| 2010 | Dodge | Ram 3500 | — | Front Right |
| 2011 | Ram | 2500 | — | Front Right |
| 2012 | Ram | 2500 | — | Front Right |
| 2013 | Ram | 2500 | — | Front Right |
| 2011 | Ram | 3500 | — | Front Right |
| 2012 | Ram | 3500 | — | Front Right |
| 2013 | Ram | 3500 | — | Front Right |
| 2012 | Ram | 4000 | — | Front Right |
| 2012 | Ram | 4000 | — | Front Left |
| 2013 | Ram | 4000 | — | Front Left |
| 2013 | Ram | 4000 | — | Front Right |
| 2014 | Ram | 4000 | — | Front Left |
| 2014 | Ram | 4000 | — | Front Right |
| 2015 | Ram | 4000 | — | Front Left |
| 2015 | Ram | 4000 | — | Front Right |
| 2016 | Ram | 4000 | — | Front Left |
| 2016 | Ram | 4000 | — | Front Right |
Cross-Reference / Replaces These Part Numbers
The AGS-KT80306N is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H620580 |
| Raybestos | BH382377 |
| Sunsong | 2203236 | 2203236A |
| Wagner | BH140882 | BH144451 | F140882 | F144451 |
| Centric Parts | 150.67109 |
| NAPA BRAKES | UP382377 |
| Alltech Automotive | 611659 |
| Chrysler | 52010312AB | 52010312AC | 52010312AD | 52010312AE |
| DFC Brake Hoses - Archived | 350-40202 |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Inside Diameter (in) | 1/8 |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 32.24 |
| Axis 1 Length (in) | 29.38 |
| End 1 Fitting Material | Treated Steel |

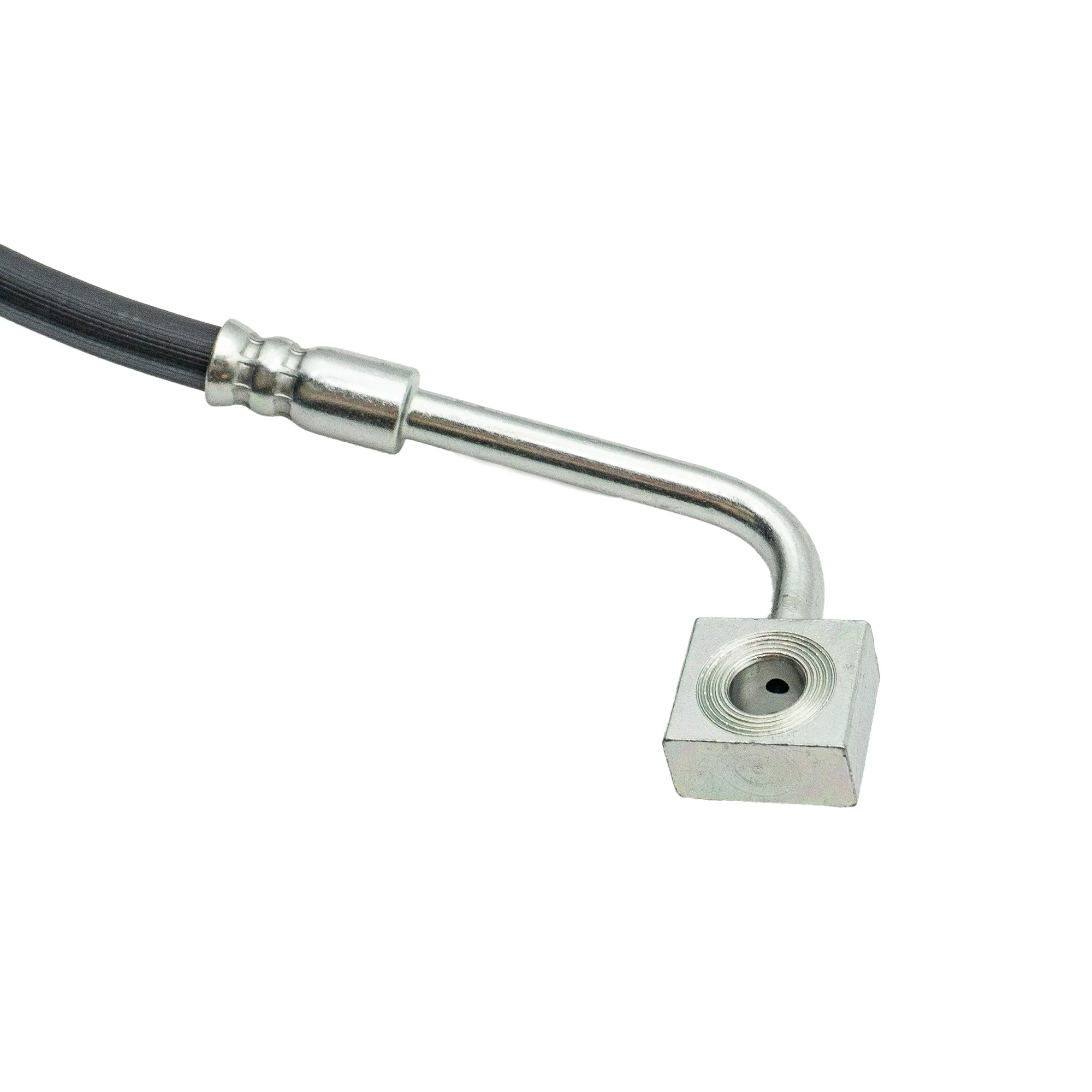

| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 10 |
| End 2 Fitting Material | Treated Steel |

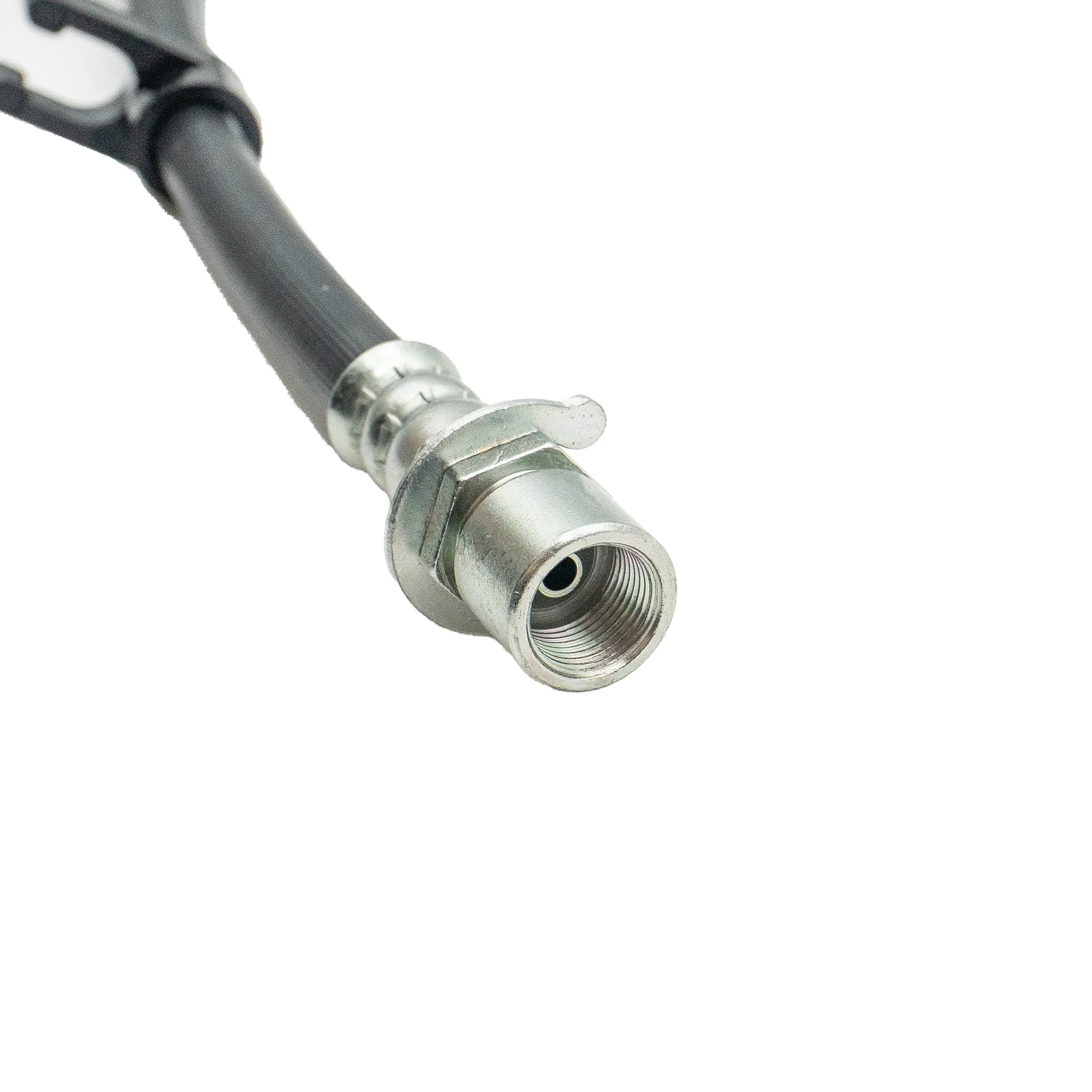

| End 2 Fitting Type | Female |
| End 2 Thread Size (mm) | M12X1 |
| Crush Washers Included | Yes |
| Mounting Bracket Included | Yes |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
