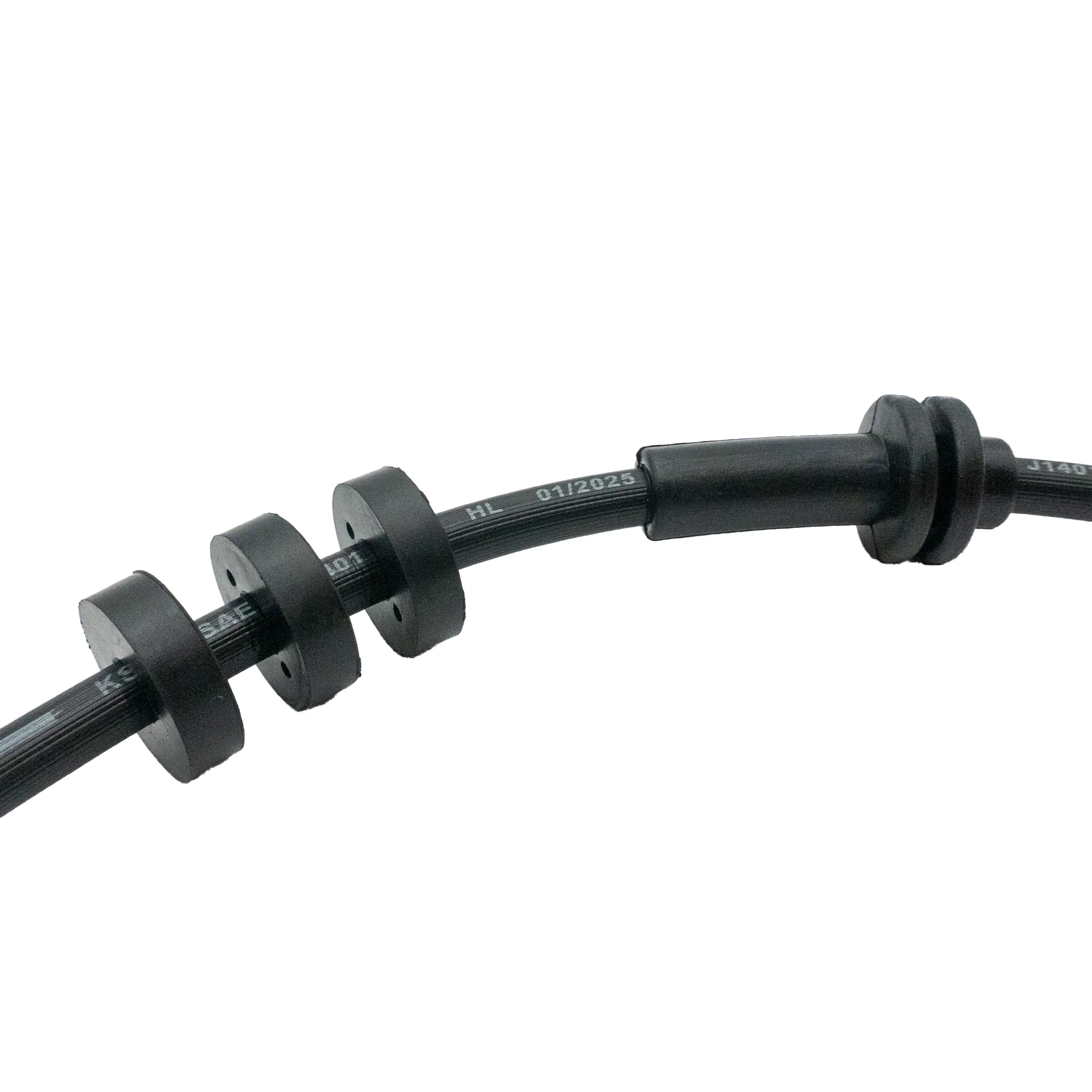

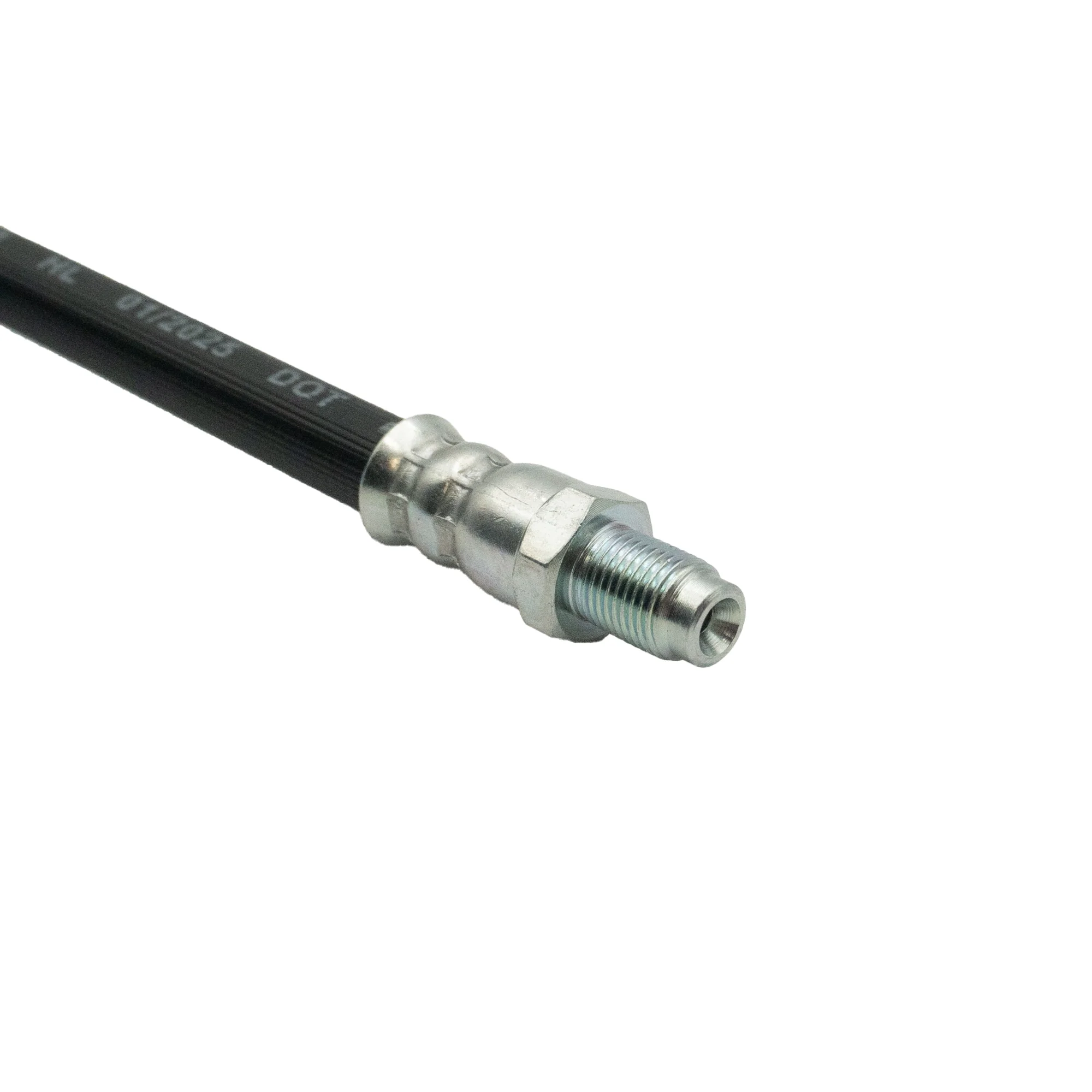

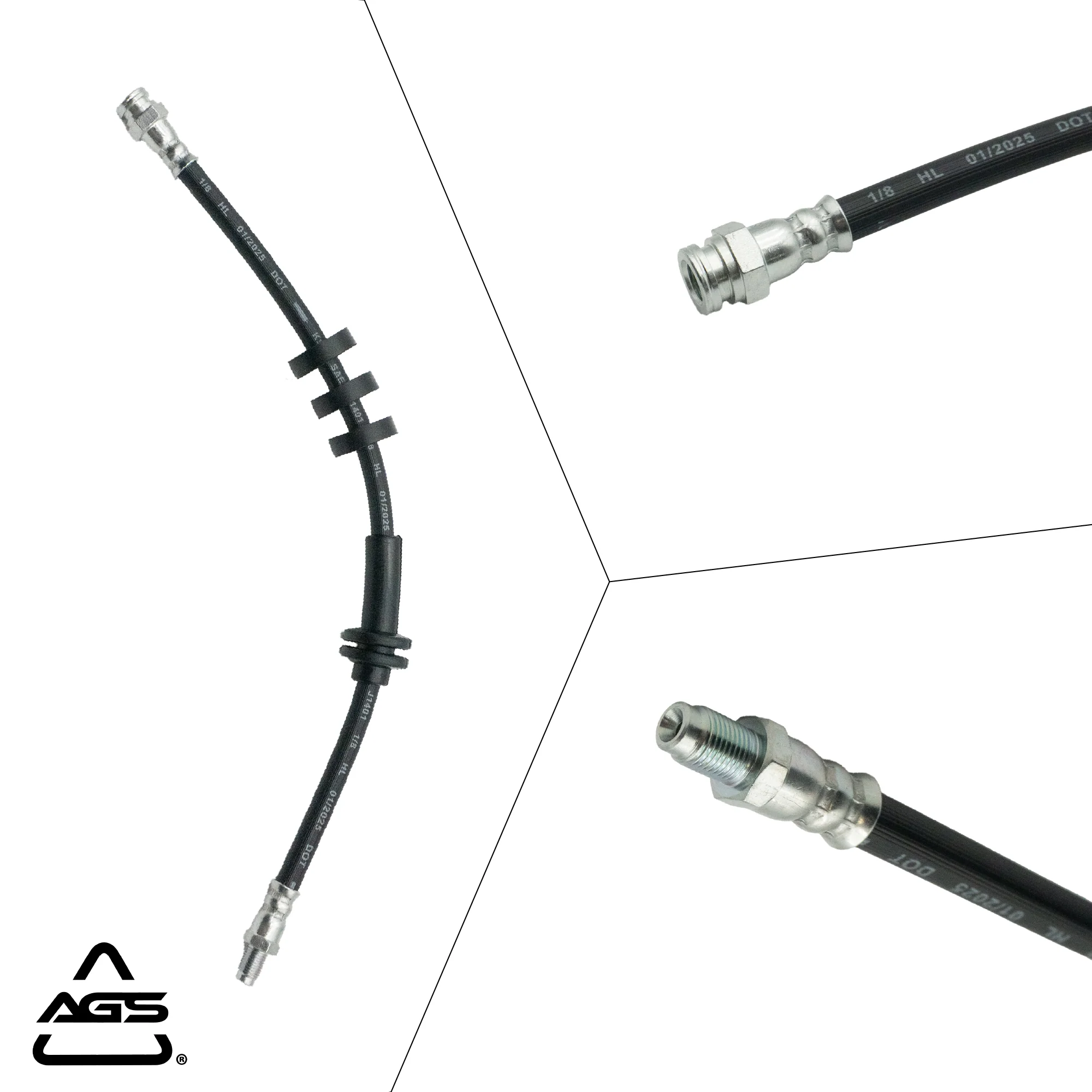

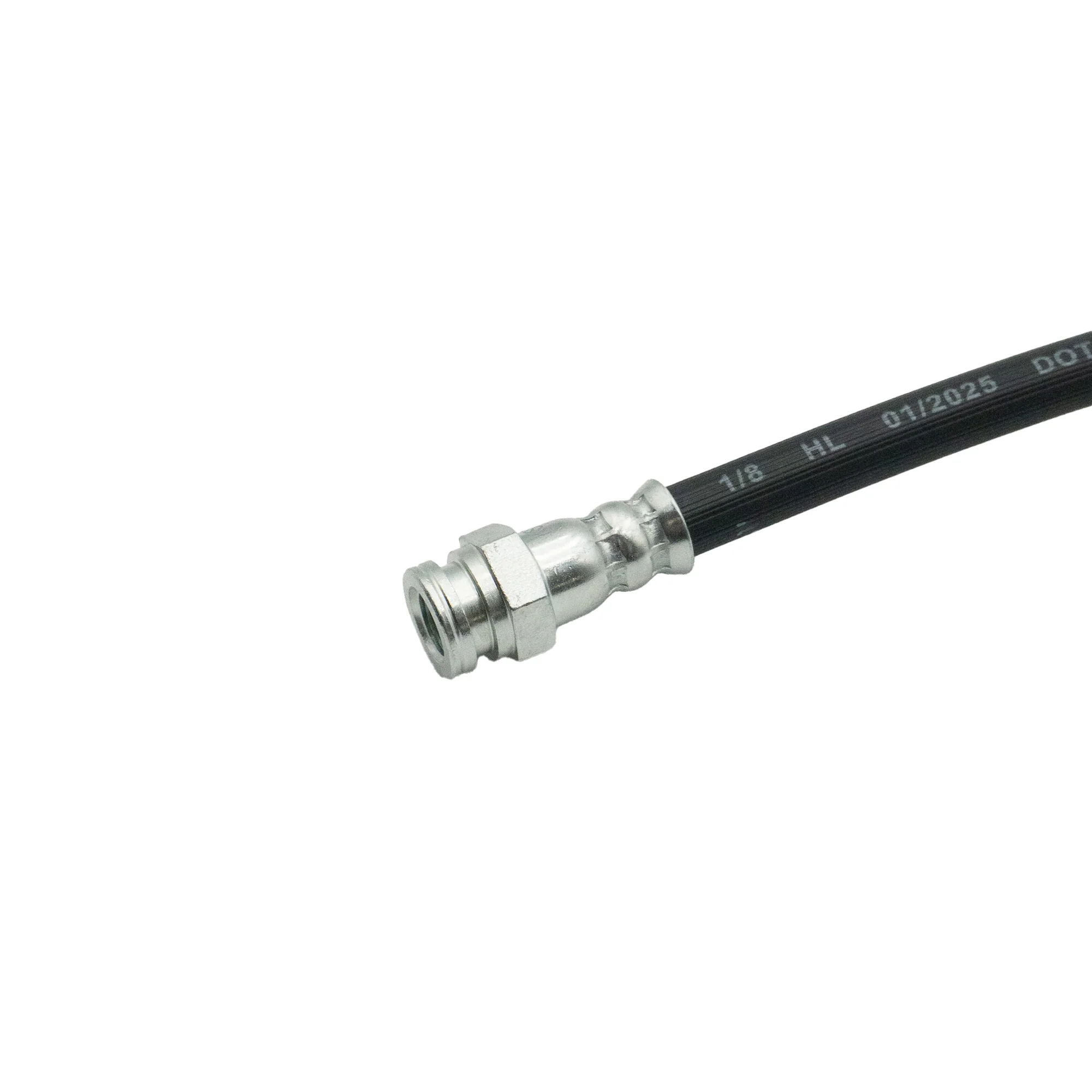

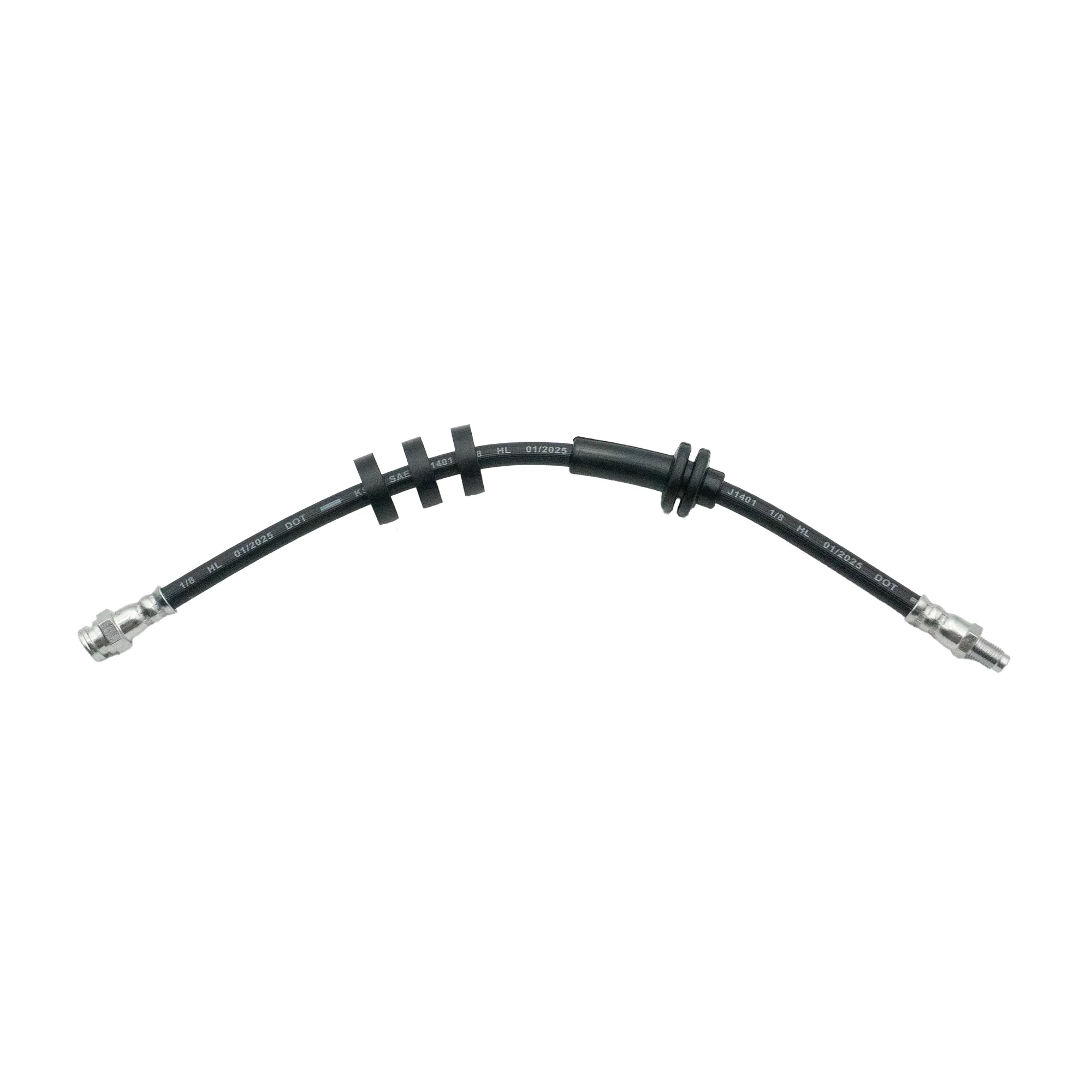

2013-2017 Chrysler 200 / Dodge Dart Front Rubber Brake Hose | AGS-KT80614
The AGS AGS-KT80614 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for the 2015-2017 Chrysler 200 and 2013-2016 Dodge Dart, Front position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2015 | Chrysler | 200 | — | Front Left |
| 2015 | Chrysler | 200 | — | Front Right |
| 2016 | Chrysler | 200 | — | Front Left |
| 2016 | Chrysler | 200 | — | Front Right |
| 2017 | Chrysler | 200 | — | Front Left |
| 2017 | Chrysler | 200 | — | Front Right |
| 2013 | Dodge | Dart | — | Front Left |
| 2013 | Dodge | Dart | — | Front Right |
| 2014 | Dodge | Dart | — | Front Left |
| 2014 | Dodge | Dart | — | Front Right |
| 2015 | Dodge | Dart | — | Front Left |
| 2015 | Dodge | Dart | — | Front Right |
| 2016 | Dodge | Dart | — | Front Right |
| 2016 | Dodge | Dart | — | Front Left |
Cross-Reference / Replaces These Part Numbers
The AGS-KT80614 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H621985 |
| Raybestos | BH383848 |
| Sunsong | 2205461 | 2206460 |
| Wagner | BH145094 |
| Centric Parts | 150.63096 | 150.63098 |
| NAPA BRAKES | UP683584 |
| Alltech Automotive | 614325 |
| Chrysler | 4779714AA | 4779714AB | 4779714AC | 4779714AD | 68213497AA | 68213497AB |
| DFC Brake Hoses - Archived | 350-40054 | 350-40056 |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Inside Diameter (in) | 1/8 |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 16.5 |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Male |
| End 1 Thread Size (mm) | M10x1 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| End 2 Thread Size (mm) | M10x1 |
| Crush Washers Included | No |
| Mounting Bracket Included | No |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
