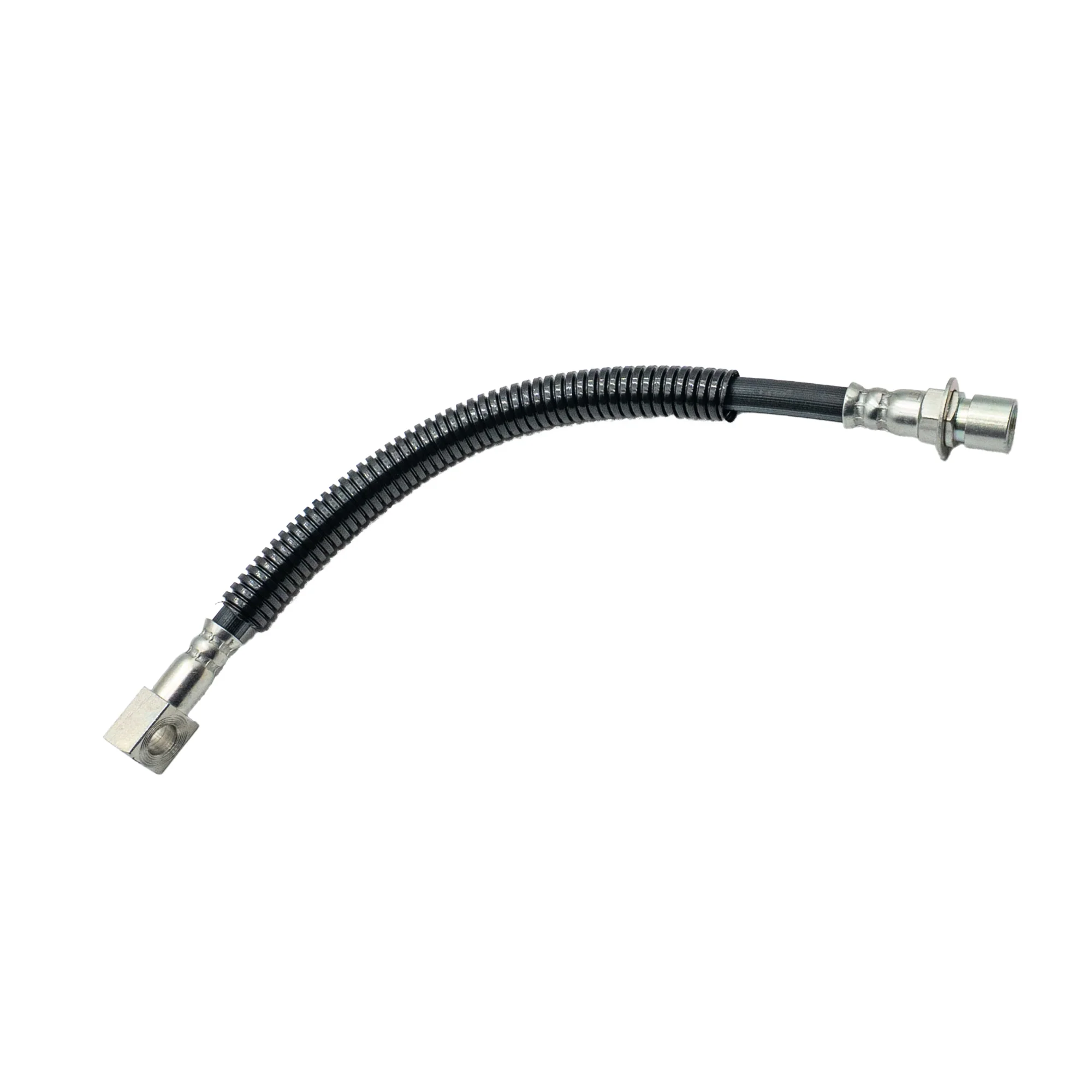

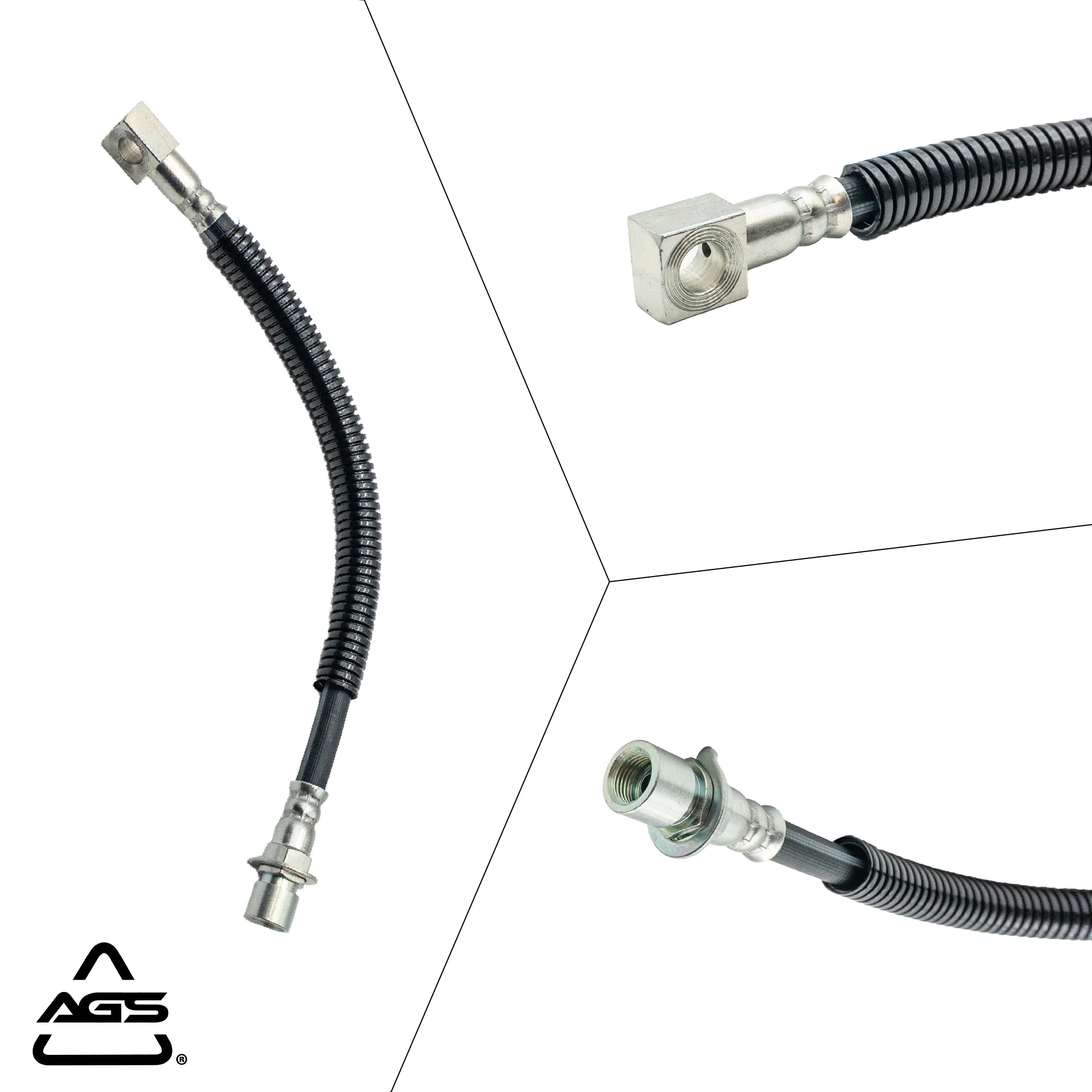

2000-2002 Chevrolet S10, GMC Sonoma +1 More Front Rubber Brake Hose | AGS-KT70339
The AGS AGS-KT70339 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 3 vehicle applications including the Chevrolet S10 and GMC Sonoma, Front position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2000 | Chevrolet | S10 | — | Front Left |
| 2000 | Chevrolet | S10 | — | Front Right |
| 2001 | Chevrolet | S10 | — | Front Right |
| 2001 | Chevrolet | S10 | — | Front Left |
| 2002 | Chevrolet | S10 | — | Front Left |
| 2002 | Chevrolet | S10 | — | Front Right |
| 2000 | GMC | Sonoma | — | Front Right |
| 2000 | GMC | Sonoma | — | Front Left |
| 2001 | GMC | Sonoma | — | Front Right |
| 2001 | GMC | Sonoma | — | Front Left |
| 2002 | GMC | Sonoma | — | Front Right |
| 2002 | GMC | Sonoma | — | Front Left |
| 2000 | Isuzu | Hombre | — | Front Left |
| 2000 | Isuzu | Hombre | — | Front Right |
Cross-Reference / Replaces These Part Numbers
The AGS-KT70339 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H381345 |
| Raybestos | BH381345 |
| AC Delco | 15158652 | 18J1656 |
| Sunsong | 2203200 |
| Wagner | BH140071 | F140071 |
| Centric Parts | 150.66093 |
| Bendix | 78882 |
| NAPA BRAKES | UP381345 |
| Aimco | B918028 |
| Alltech Automotive | 610028 |
| Coni-Seal | BH400810 |
| DFC Brake Hoses - Archived | 350-47302 |
| General Motors | 15158652 |
| Isuzu | 8151586520 |
| Norflex | NF381345 |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 12.3125 |
| Overall Length (mm) | 313 |
| Axis 1 Length (in) | 12.38 |

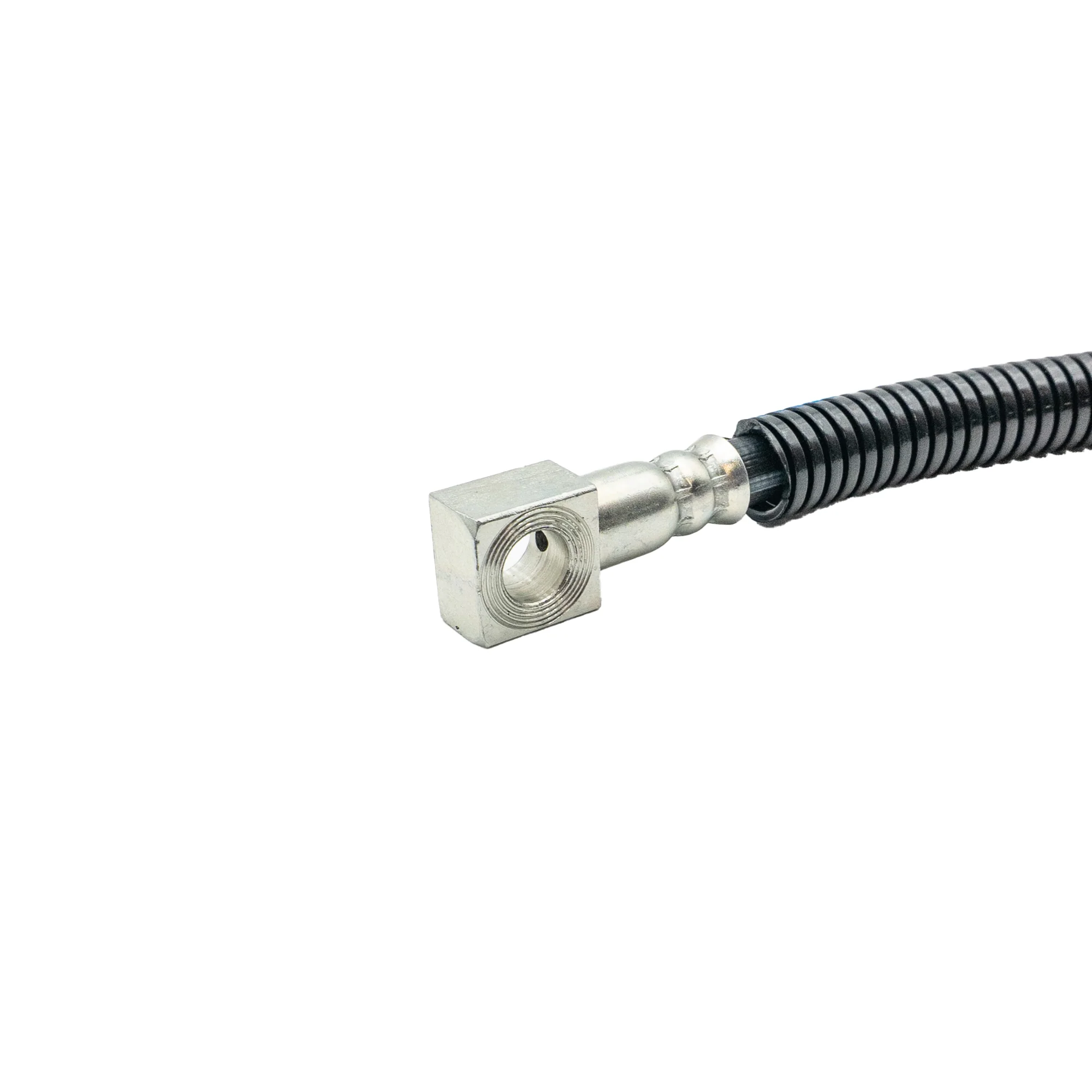

| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 10 |

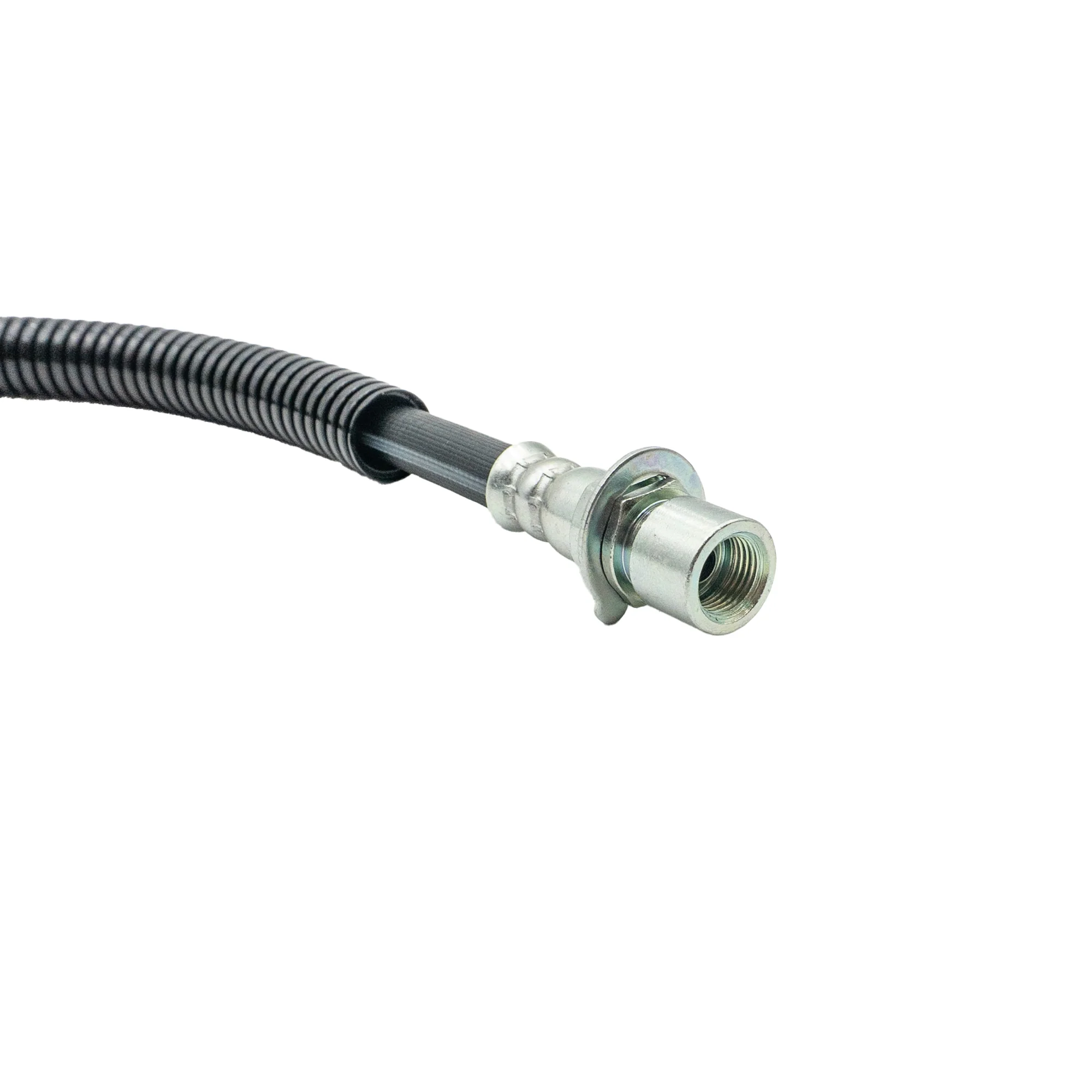

| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Crush Washers Included | Yes |
| Mounting Bracket Included | No |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
