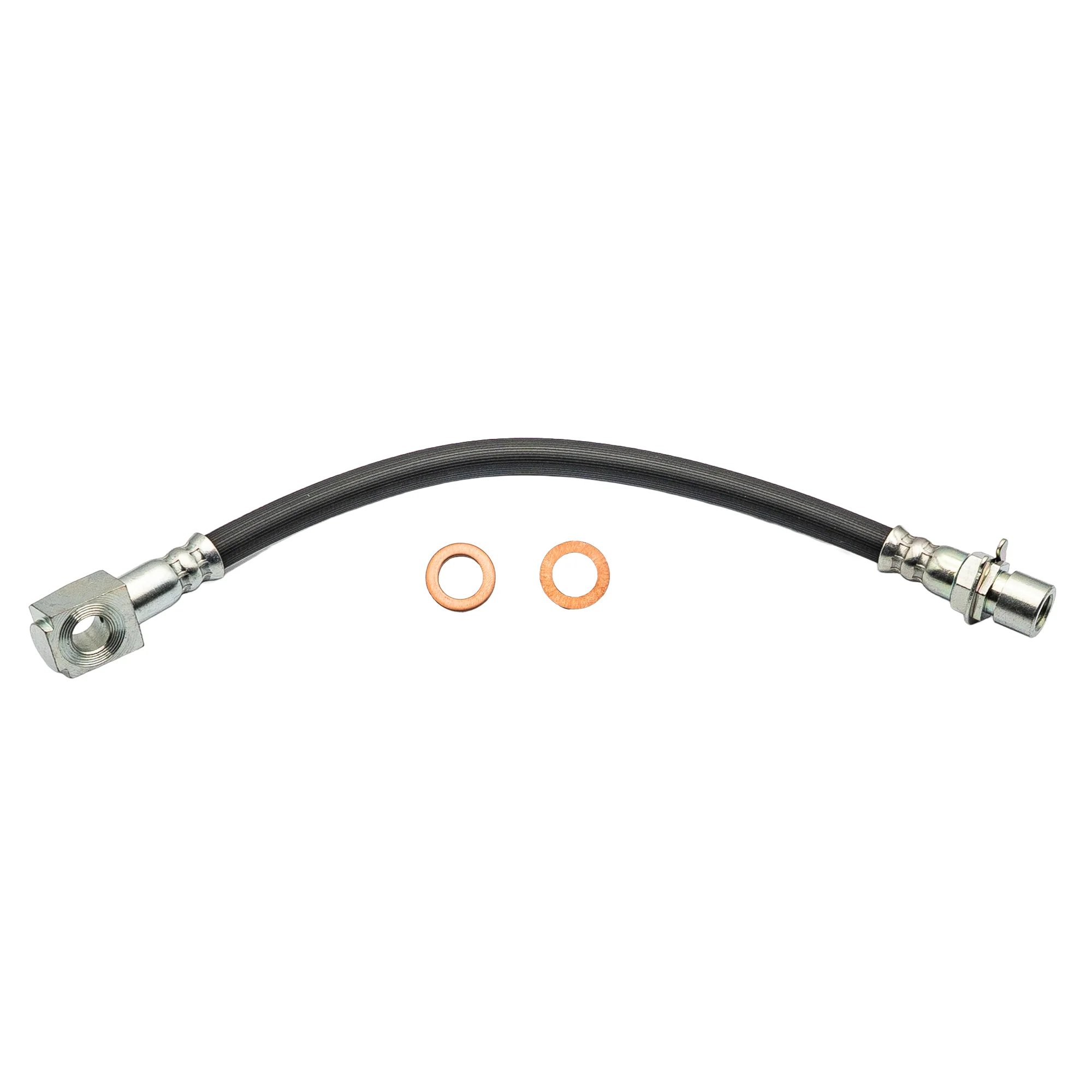

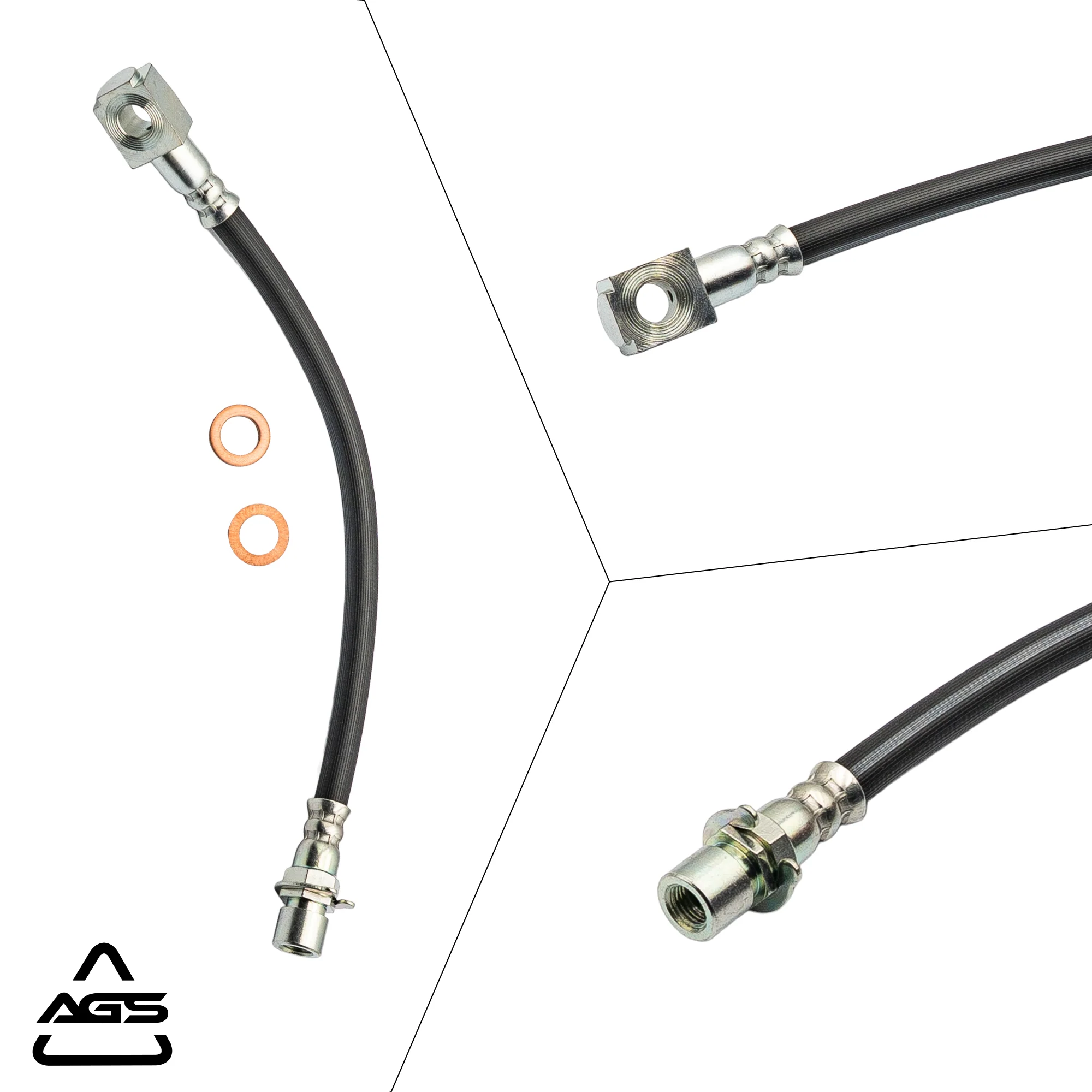

1997-2005 Chevrolet Blazer, Chevrolet S10 +3 More Rear Rubber Brake Hose | AGS-KT70313

The AGS AGS-KT70313 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 5 vehicle applications including the Chevrolet Blazer and Chevrolet S10, Rear position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.

Key Features & Benefits

• DOT-approved for road use and federal compliance
• EPDM hose construction for flexibility, durability, and chemical resistance
• Treated Steel fittings on both ends for corrosion resistance
• OE-quality replacement — direct fit with factory mounting points
• Each hose is 100% pressure tested for leaks
• Engineered to OEM hydraulic standards
• Crush washers included for leak-free installation
• Backed by AGS quality assurance from a 70+ year automotive aftermarket leader

Vehicle Fitment

This brake hose is engineered to fit the following vehicle applications:

Year	Make	Model	Submodel	Position
1997	Chevrolet	Blazer	—	Rear Left
1997	Chevrolet	Blazer	—	Rear Right
1998	Chevrolet	Blazer	—	Rear Left
1998	Chevrolet	Blazer	—	Rear Right
1999	Chevrolet	Blazer	—	Rear Right
1999	Chevrolet	Blazer	—	Rear Left
2000	Chevrolet	Blazer	—	Rear Left
2000	Chevrolet	Blazer	—	Rear Right
2001	Chevrolet	Blazer	—	Rear Right
2001	Chevrolet	Blazer	—	Rear Left
2002	Chevrolet	Blazer	—	Rear Left
2002	Chevrolet	Blazer	—	Rear Right
2003	Chevrolet	Blazer	—	Rear Right
2003	Chevrolet	Blazer	—	Rear Left
2004	Chevrolet	Blazer	—	Rear Right
2004	Chevrolet	Blazer	—	Rear Left
2005	Chevrolet	Blazer	—	Rear Left
2005	Chevrolet	Blazer	—	Rear Right
2002	Chevrolet	S10	—	Rear Left Outer
2003	Chevrolet	S10	—	Rear Left Outer
2004	Chevrolet	S10	—	Rear Left Outer
1998	Chevrolet	S10	Base	Rear Right Outer
1998	Chevrolet	S10	Base	Rear Left Outer
1999	Chevrolet	S10	Base	Rear Left Outer
1999	Chevrolet	S10	Base	Rear Right Outer
2000	Chevrolet	S10	Base	Rear Left Outer
2000	Chevrolet	S10	Base	Rear Right Outer
2001	Chevrolet	S10	Base	Rear Right Outer
2001	Chevrolet	S10	Base	Rear Left Outer
2002	Chevrolet	S10	Base	Rear Right Outer
2003	Chevrolet	S10	Base	Rear Right Outer
1998	Chevrolet	S10	LS	Rear Left Outer
1998	Chevrolet	S10	LS	Rear Right Outer
1999	Chevrolet	S10	LS	Rear Left Outer
1999	Chevrolet	S10	LS	Rear Right Outer
2000	Chevrolet	S10	LS	Rear Left Outer
2000	Chevrolet	S10	LS	Rear Right Outer
2001	Chevrolet	S10	LS	Rear Left Outer
2001	Chevrolet	S10	LS	Rear Right Outer
2002	Chevrolet	S10	LS	Rear Right Outer
2003	Chevrolet	S10	LS	Rear Right Outer
2004	Chevrolet	S10	LS	Rear Right Outer
1998	Chevrolet	S10	SS	Rear Right Outer
1998	Chevrolet	S10	SS	Rear Left Outer
1999	Chevrolet	S10	Xtreme	Rear Right Outer
1999	Chevrolet	S10	Xtreme	Rear Left Outer
2000	Chevrolet	S10	Xtreme	Rear Left Outer
2000	Chevrolet	S10	Xtreme	Rear Right Outer
2001	Chevrolet	S10	Xtreme	Rear Left Outer
2001	Chevrolet	S10	Xtreme	Rear Right Outer
2002	Chevrolet	S10	Xtreme	Rear Right Outer
2003	Chevrolet	S10	Xtreme	Rear Right Outer
1998	Chevrolet	S10	ZR2	Rear Left Outer
1999	Chevrolet	S10	ZR2	Rear Left Outer
2000	Chevrolet	S10	ZR2	Rear Left Outer
2001	Chevrolet	S10	ZR2	Rear Left Outer
2002	Chevrolet	S10	ZR5	Rear Right Outer
2003	Chevrolet	S10	ZR5	Rear Right Outer
2004	Chevrolet	S10	ZR5	Rear Right Outer
1998	GMC	Jimmy	—	Rear Left
1998	GMC	Jimmy	—	Rear Right
1999	GMC	Jimmy	—	Rear Right
1999	GMC	Jimmy	—	Rear Left
2000	GMC	Jimmy	—	Rear Left
2000	GMC	Jimmy	—	Rear Right
2001	GMC	Jimmy	—	Rear Left
2001	GMC	Jimmy	—	Rear Right
2002	GMC	Jimmy	—	Rear Left
2002	GMC	Jimmy	—	Rear Right
2003	GMC	Jimmy	—	Rear Left
2003	GMC	Jimmy	—	Rear Right
2004	GMC	Jimmy	—	Rear Right
2004	GMC	Jimmy	—	Rear Left
2005	GMC	Jimmy	—	Rear Left
2005	GMC	Jimmy	—	Rear Right
1998	GMC	Sonoma	—	Rear Right Outer
1998	GMC	Sonoma	—	Rear Left Outer
1999	GMC	Sonoma	—	Rear Right Outer
1999	GMC	Sonoma	—	Rear Left Outer
2000	GMC	Sonoma	—	Rear Left Outer
2000	GMC	Sonoma	—	Rear Right Outer
2001	GMC	Sonoma	—	Rear Left Outer
2001	GMC	Sonoma	—	Rear Right Outer
2002	GMC	Sonoma	—	Rear Left Outer
2003	GMC	Sonoma	—	Rear Left Outer
2004	GMC	Sonoma	—	Rear Left Outer
1997	Isuzu	Hombre	—	Rear Right
1997	Isuzu	Hombre	—	Rear Left
1998	Isuzu	Hombre	—	Rear Left
1998	Isuzu	Hombre	—	Rear Right
1999	Isuzu	Hombre	—	Rear Right
1999	Isuzu	Hombre	—	Rear Left
2000	Isuzu	Hombre	—	Rear Right
2000	Isuzu	Hombre	—	Rear Left

**INTERCHANGEABLE**

Cross-Reference / Replaces These Part Numbers

The AGS-KT70313 is a direct cross-reference for the following replacement brake hose part numbers:

Brand	Part Number
Dorman First Stop	H381065
Raybestos	BH381065
AC Delco	176-1019
Sunsong	2203738
Wagner	BH141677 | F141677
Centric Parts	150.66321
NAPA BRAKES	UP381065
ARI	87-44321
Aimco	B917801
Alltech Automotive	611310
Autospecialty	HB-86321
Coni-Seal	BH251580
DFC Brake Hoses - Archived	350-47368
General Motors	22163464
Isuzu	8221634640

**END_INTERCHANGEABLE****SPECS**

Specifications

Hose Material	EPDM
Outer Sleeve Material	EPDM
Outside Diameter (mm)	10.5
Overall Length (in)	11.8125
Overall Length (mm)	300
Axis 1 Length (in)	11.75
End 1 Fitting Material	Treated Steel

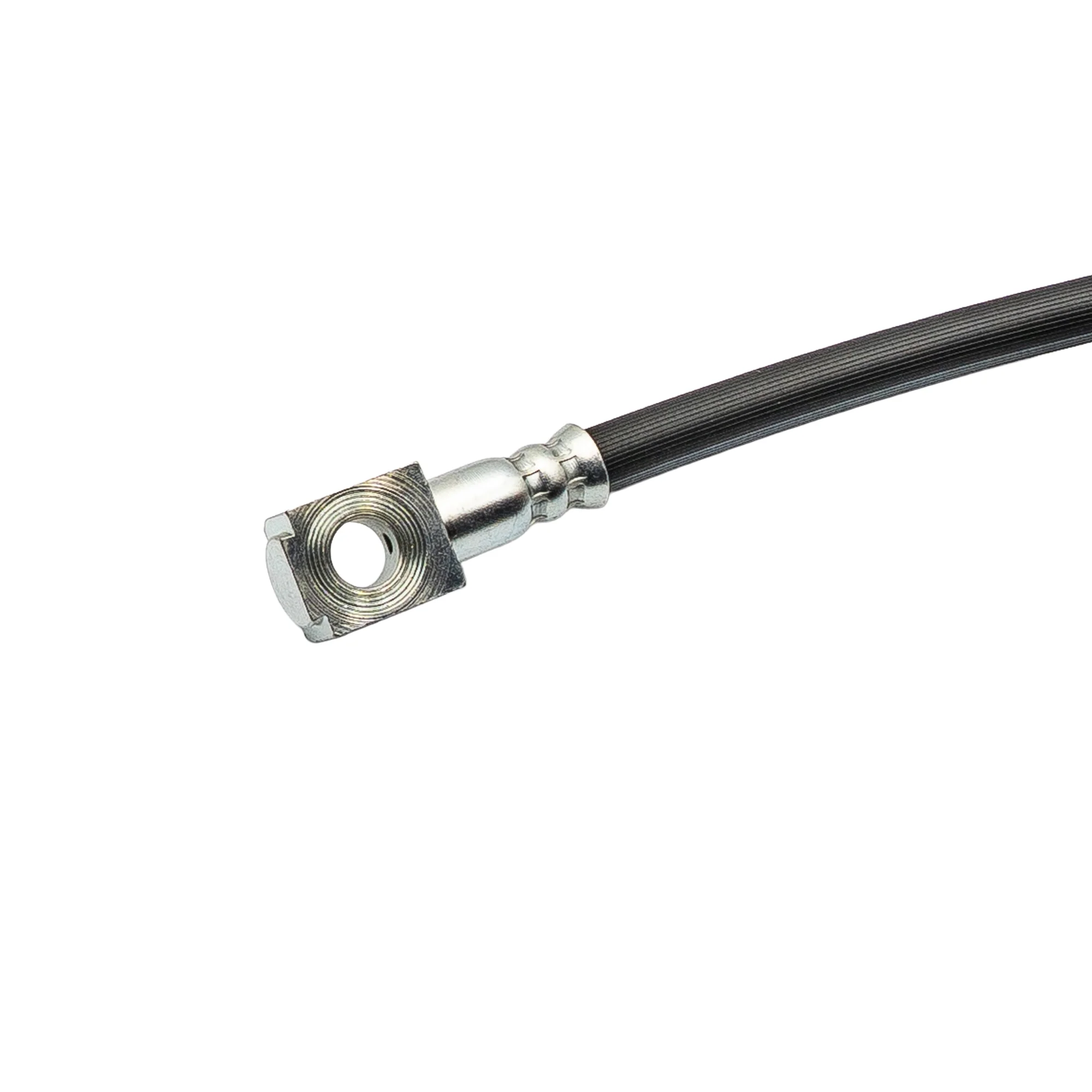

End 1 Fitting Type	Banjo
End 1 Thread Size (mm)	10
End 2 Fitting Material	Treated Steel

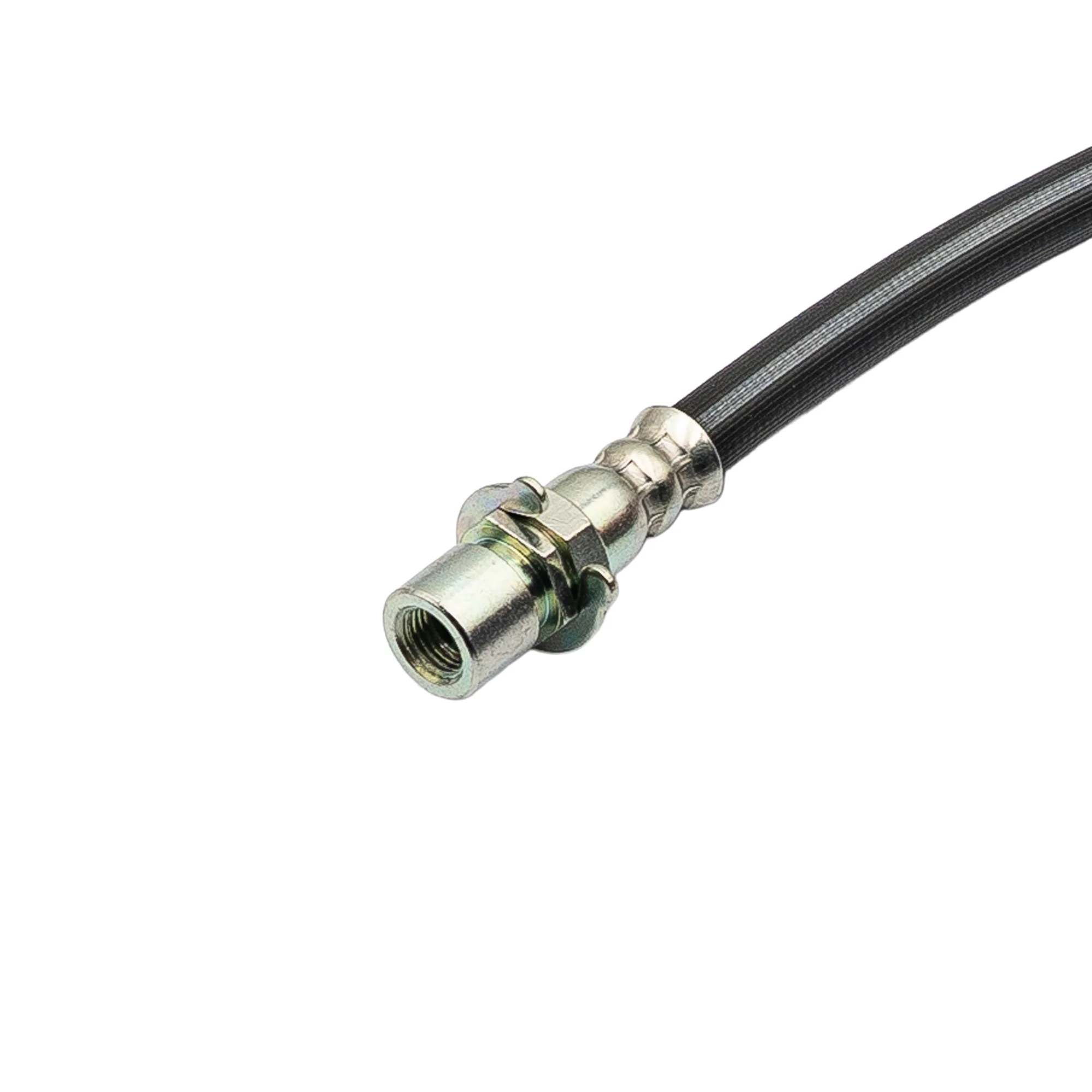

End 2 Fitting Type	Female
Crush Washers Included	Yes
Mounting Bracket Included	No
DOT Approved	Yes

**END_SPECS**

About AGS Company

AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
