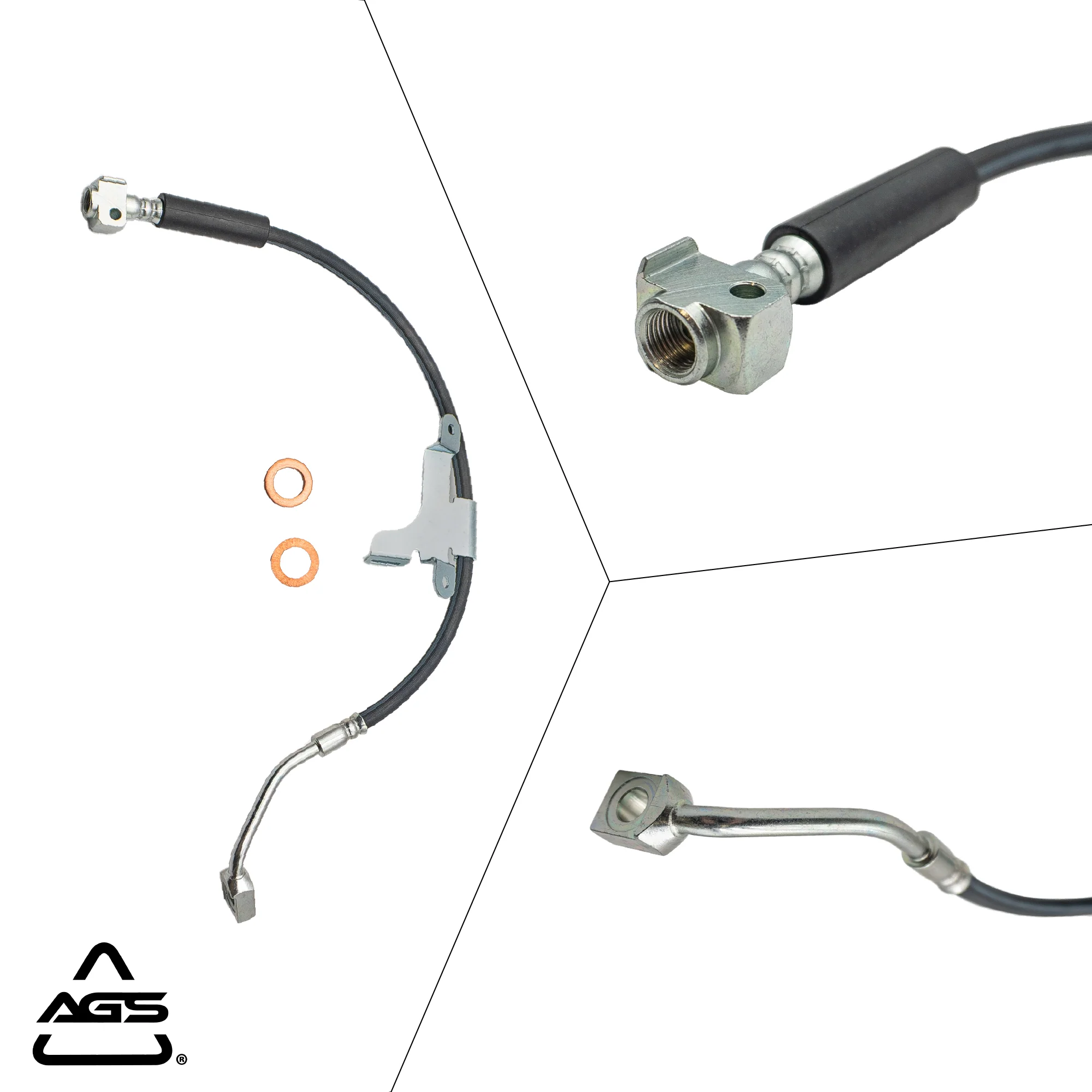

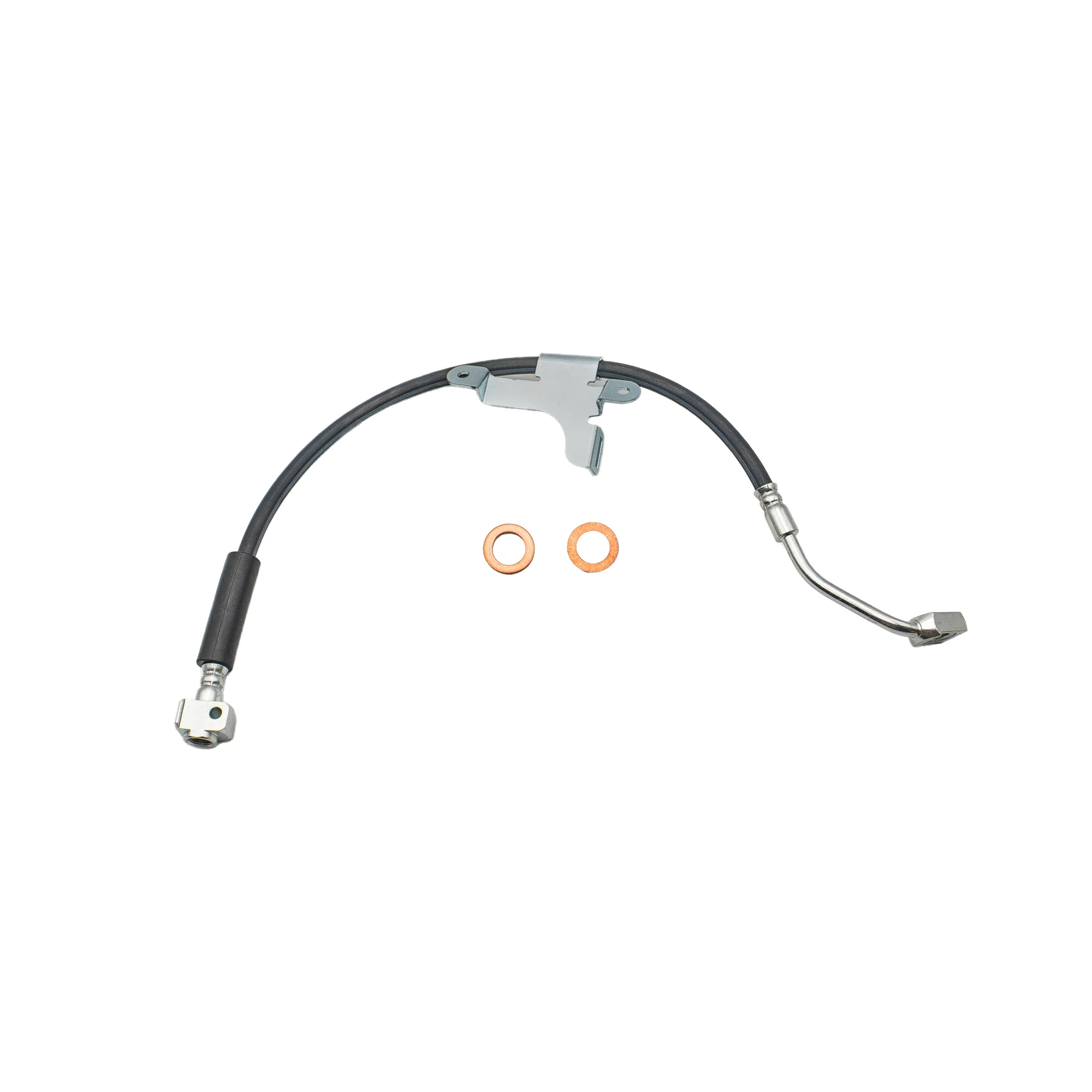

2002-2006 Multi-Vehicle Application Front Left Rubber Brake Hose | AGS-KT70119

The AGS AGS-KT70119 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for 10 vehicle applications including the Buick Rainier and Chevrolet SSR, Front Left position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.

Key Features & Benefits

• DOT-approved for road use and federal compliance
• EPDM hose construction for flexibility, durability, and chemical resistance
• Treated Steel fittings on both ends for corrosion resistance
• OE-quality replacement — direct fit with factory mounting points
• Each hose is 100% pressure tested for leaks
• Engineered to OEM hydraulic standards
• Crush washers included for leak-free installation

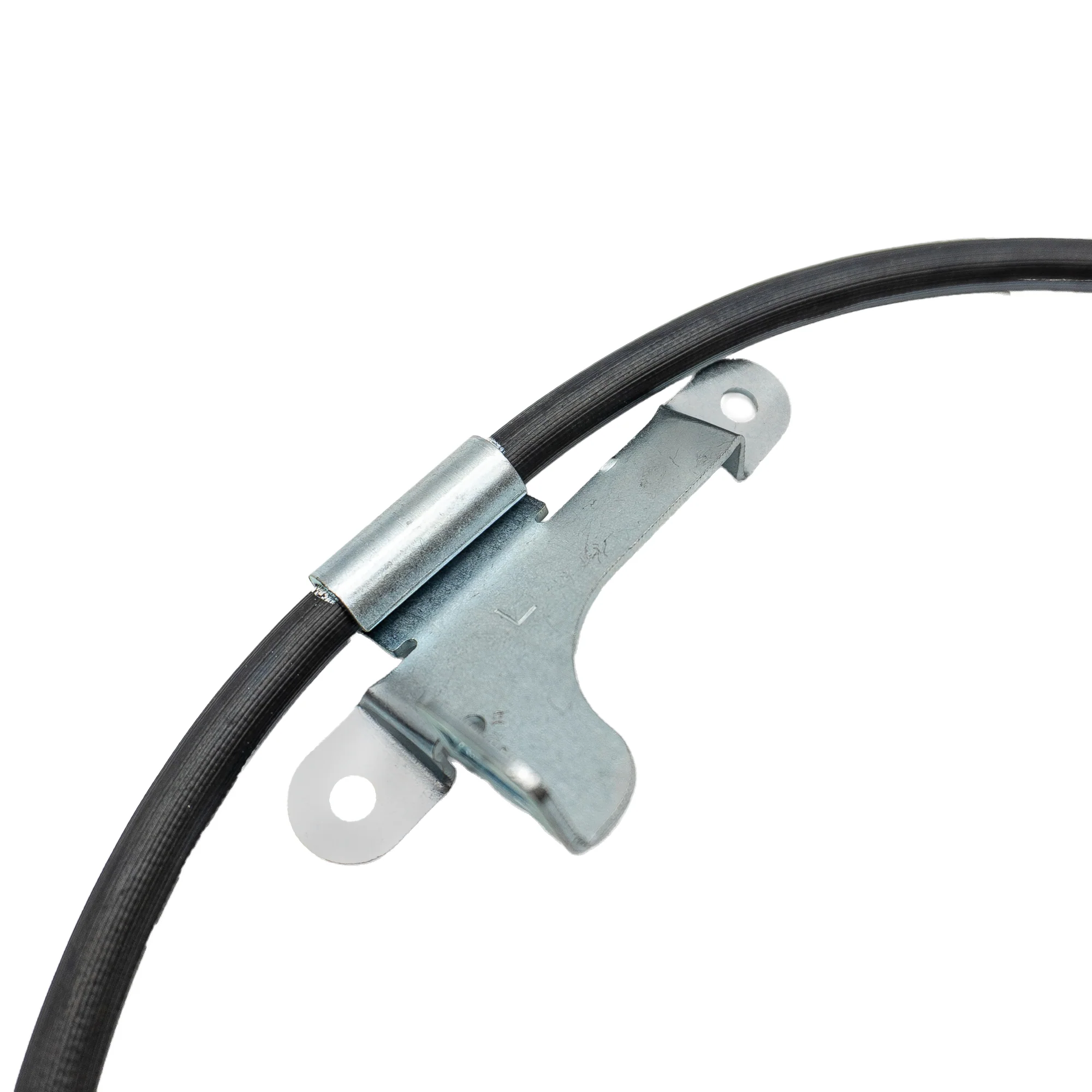

• Mounting bracket included
• Backed by AGS quality assurance from a 70+ year automotive aftermarket leader

Vehicle Fitment

This brake hose is engineered to fit the following vehicle applications:

Year	Make	Model	Submodel	Position
2004	Buick	Rainier	—	Front Left
2005	Buick	Rainier	—	Front Left
2003	Chevrolet	SSR	—	Front Left
2004	Chevrolet	SSR	—	Front Left
2005	Chevrolet	SSR	—	Front Left
2006	Chevrolet	SSR	—	Front Left
2002	Chevrolet	Trailblazer	—	Front Left
2003	Chevrolet	Trailblazer	—	Front Left
2004	Chevrolet	Trailblazer	—	Front Left
2005	Chevrolet	Trailblazer	—	Front Left
2002	Chevrolet	Trailblazer EXT	—	Front Left
2003	Chevrolet	Trailblazer EXT	—	Front Left
2004	Chevrolet	Trailblazer EXT	—	Front Left
2005	Chevrolet	Trailblazer EXT	—	Front Left
2002	GMC	Envoy	—	Front Left
2003	GMC	Envoy	—	Front Left
2004	GMC	Envoy	—	Front Left
2005	GMC	Envoy	—	Front Left
2002	GMC	Envoy XL	—	Front Left
2003	GMC	Envoy XL	—	Front Left
2004	GMC	Envoy XL	—	Front Left
2005	GMC	Envoy XL	—	Front Left
2004	GMC	Envoy XUV	—	Front Left
2005	GMC	Envoy XUV	—	Front Left
2003	Isuzu	Ascender	—	Front Left
2004	Isuzu	Ascender	—	Front Left
2005	Isuzu	Ascender	—	Front Left
2002	Oldsmobile	Bravada	—	Front Left
2003	Oldsmobile	Bravada	—	Front Left
2004	Oldsmobile	Bravada	—	Front Left
2005	Saab	9-7x	—	Front Left

**INTERCHANGEABLE**

Cross-Reference / Replaces These Part Numbers

The AGS-KT70119 is a direct cross-reference for the following replacement brake hose part numbers:

Brand	Part Number
Dorman First Stop	H620047
Raybestos	BH382617
AC Delco	176-1009 | 176-1455 | 18J4355
Sunsong	2202916
Wagner	BH141361 | F141361
Centric Parts	150.66106
Bendix	79101
NAPA BRAKES	UP609056
Alltech Automotive	612802
Coni-Seal	BH414840
DFC Brake Hoses - Archived	350-47309
General Motors	10372505 | 15070807 | 15112268 | 15130860 | 15156498 | 15786538
Isuzu	8151122680

**END_INTERCHANGEABLE****SPECS**

Specifications

Hose Material	EPDM
Outer Sleeve Material	EPDM
Outside Diameter (mm)	10.5
Overall Length (in)	20.875
Overall Length (mm)	530
Axis 1 Length (in)	20.88
End 1 Fitting Material	Treated Steel

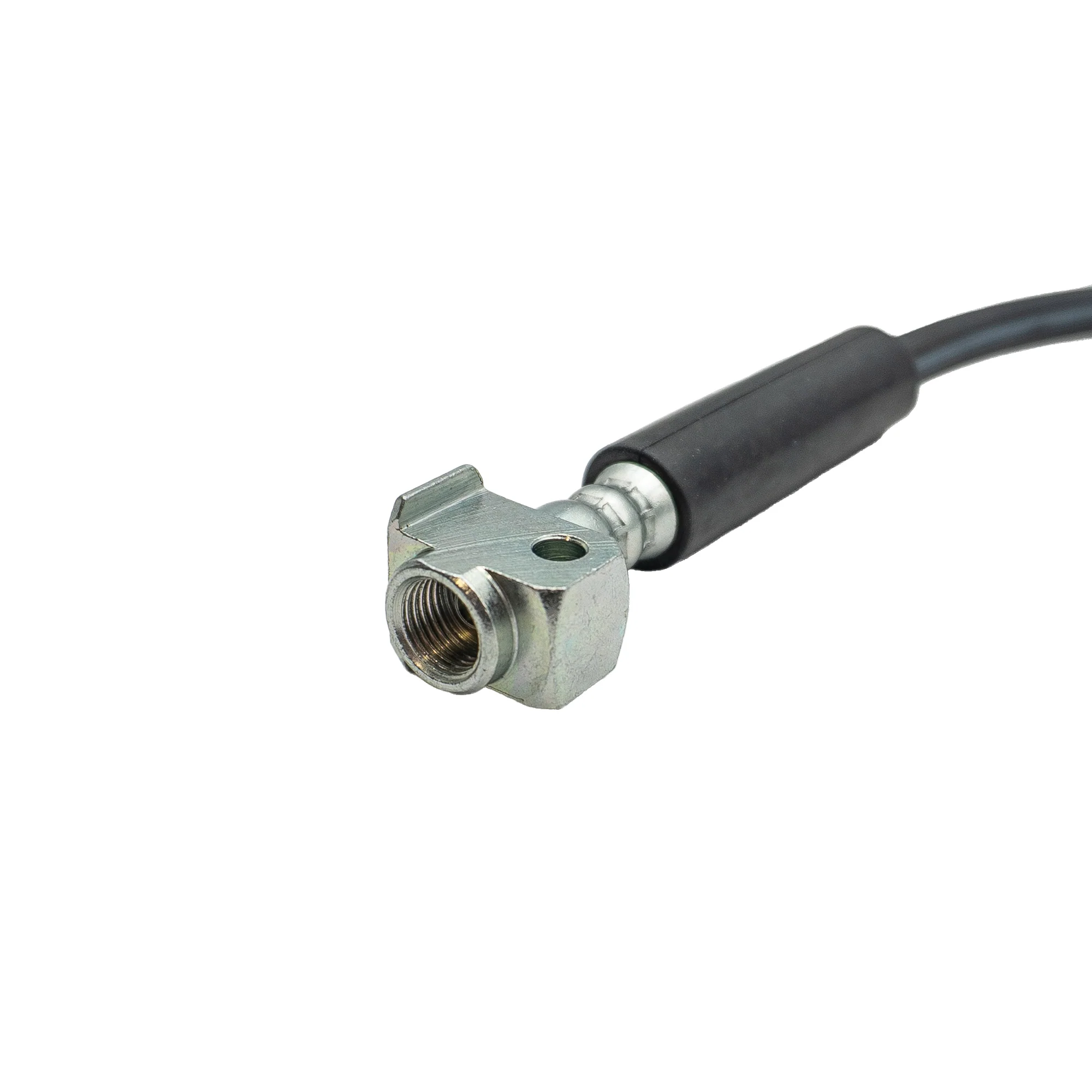

End 1 Fitting Type	Banjo
End 1 Thread Size (mm)	10
End 2 Fitting Material	Treated Steel

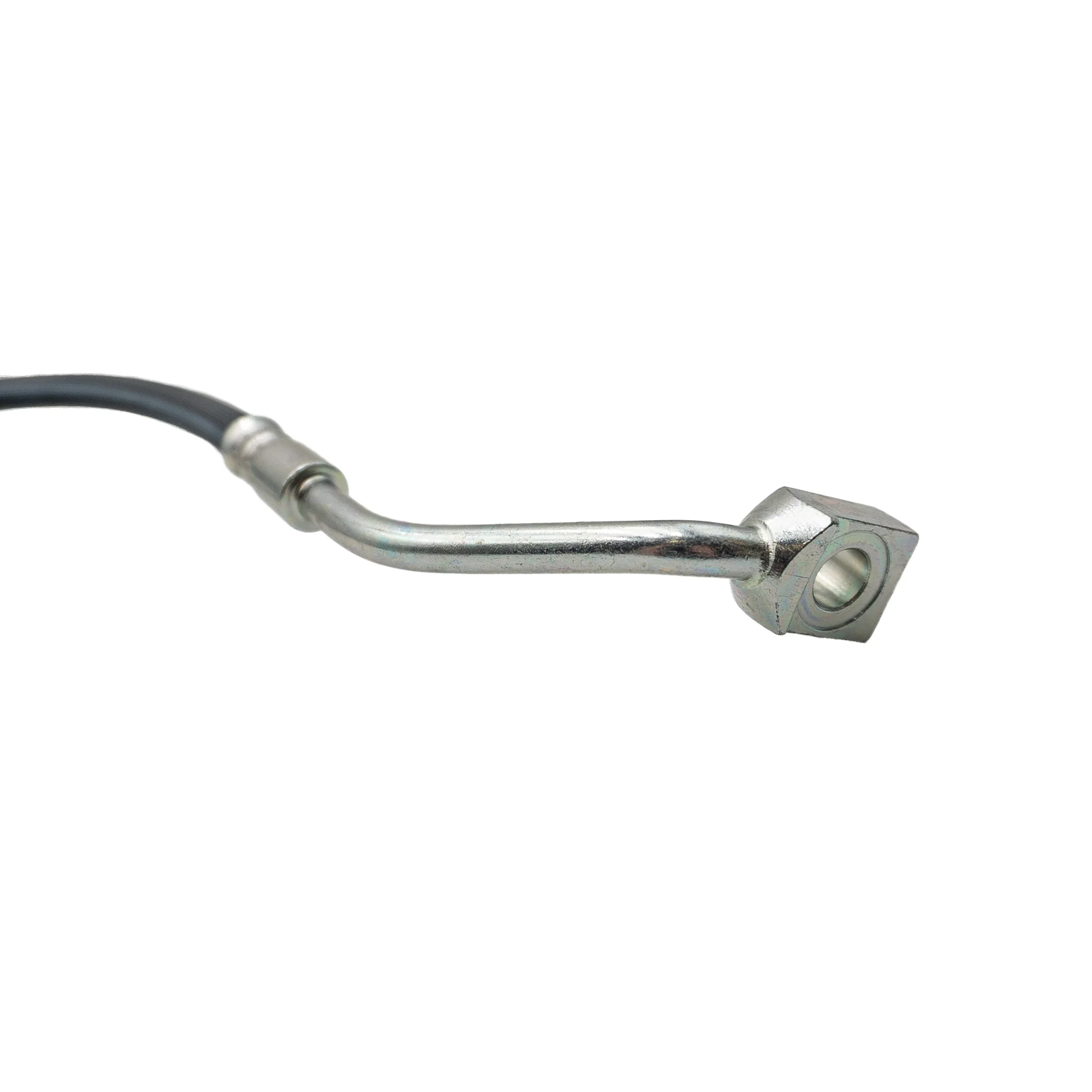

End 2 Fitting Type	Junction Block
Crush Washers Included	Yes
Mounting Bracket Included	Yes
DOT Approved	Yes

**END_SPECS**

About AGS Company

AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
