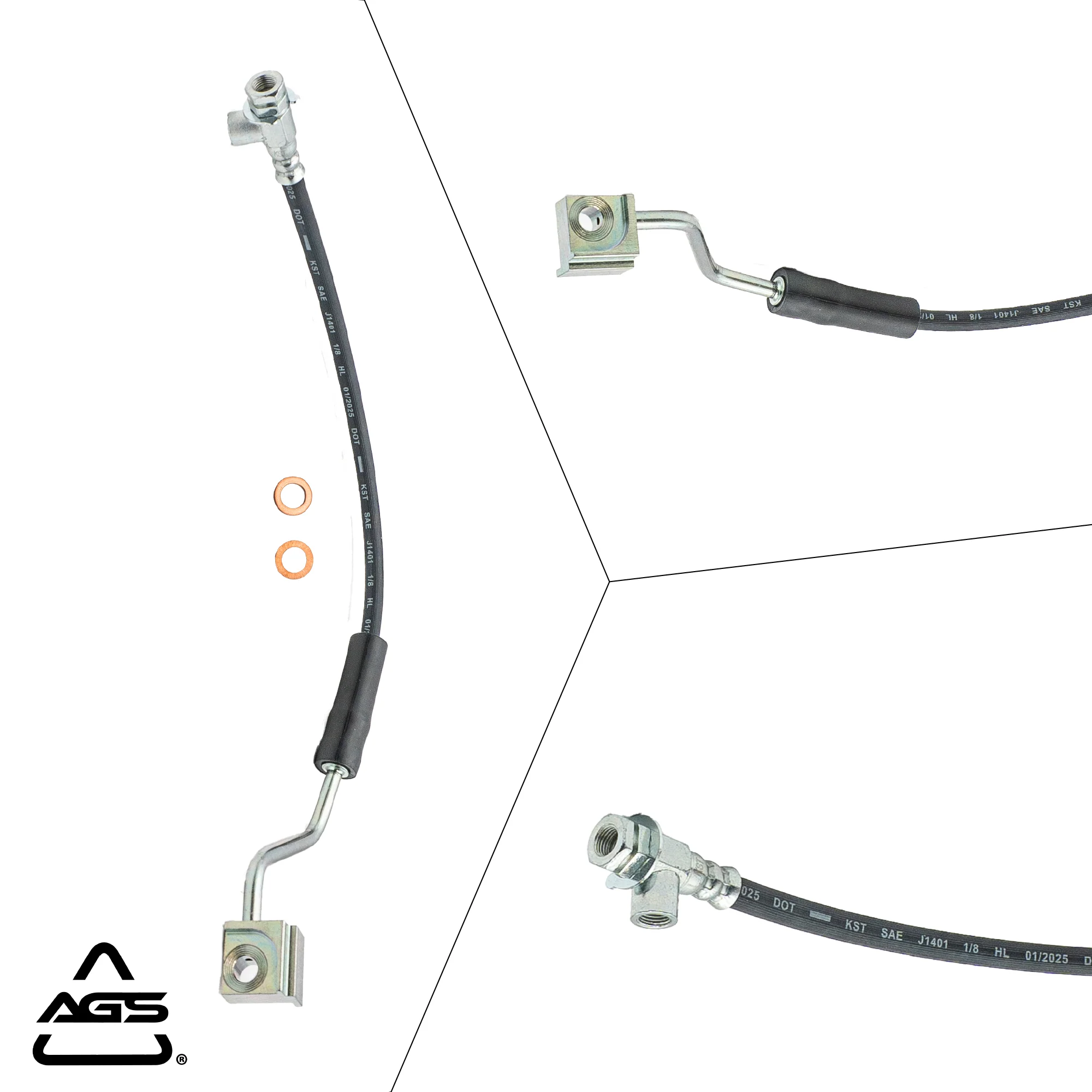

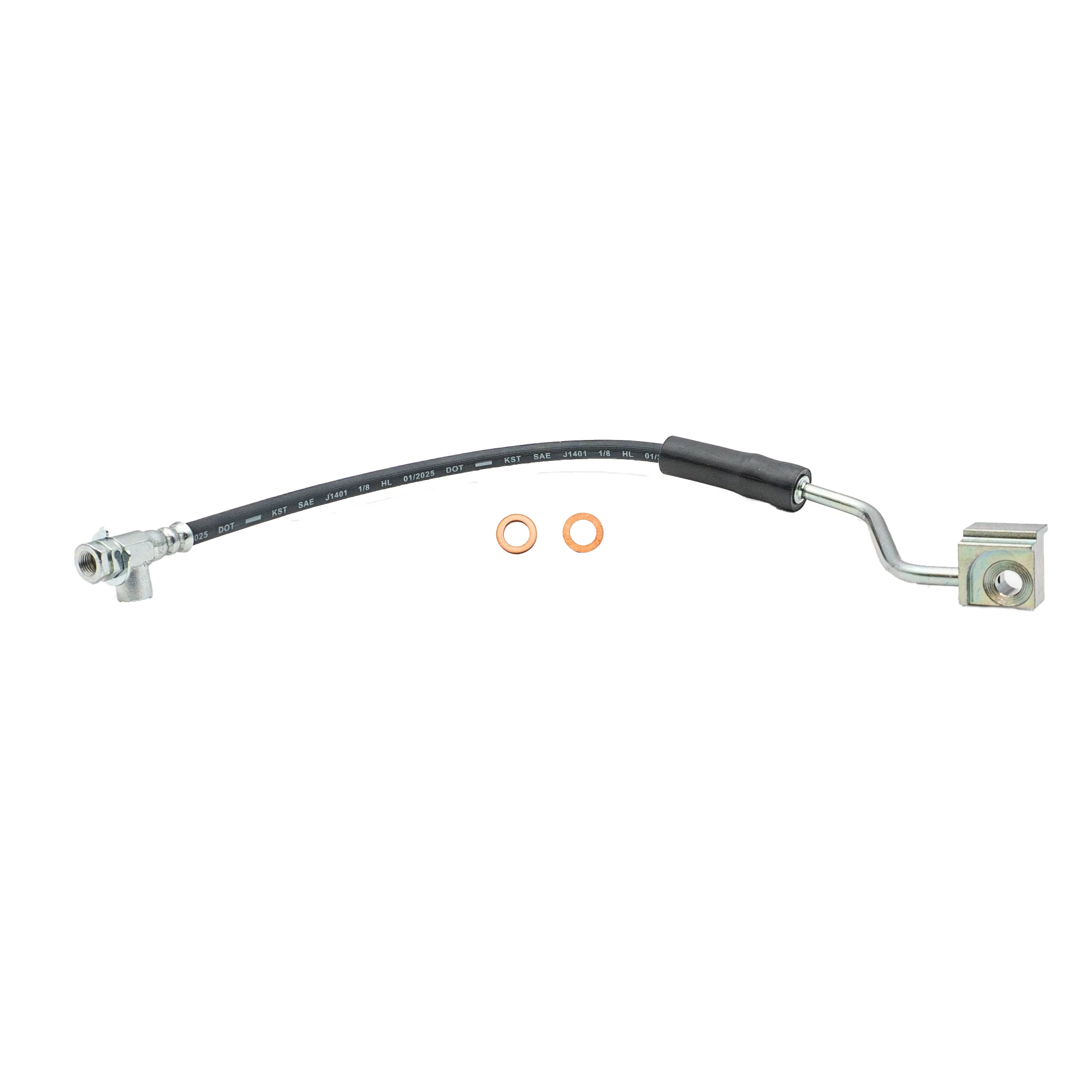

1990-1996 Ford Bronco & F-150 Front Left Rubber Brake Hose | AGS-KT60616
The AGS AGS-KT60616 is a premium rubber brake hydraulic hose engineered as a direct-fit replacement for the 1990-1992 Ford Bronco and 1990-1996 Ford F-150, Front Left position. Manufactured to OE specifications using DOT-approved and durable EPDM construction, this brake hose delivers reliable hydraulic performance, corrosion resistance, and a precise factory fit for confident installation.
Key Features & Benefits
- DOT-approved for road use and federal compliance
- EPDM hose construction for flexibility, durability, and chemical resistance
- Treated Steel fittings on both ends for corrosion resistance
- OE-quality replacement — direct fit with factory mounting points
- Each hose is 100% pressure tested for leaks
- Engineered to OEM hydraulic standards
- Crush washers included for leak-free installation
- Backed by AGS quality assurance from a 70+ year automotive aftermarket leader
Vehicle Fitment
This brake hose is engineered to fit the following vehicle applications:
| Year | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 1990 | Ford | Bronco | — | Front Left |
| 1991 | Ford | Bronco | — | Front Left |
| 1992 | Ford | Bronco | — | Front Left |
| 1990 | Ford | F-150 | — | Front Left |
| 1991 | Ford | F-150 | — | Front Left |
| 1992 | Ford | F-150 | — | Front Left |
| 1993 | Ford | F-150 | — | Front Left |
| 1994 | Ford | F-150 | — | Front Left |
| 1995 | Ford | F-150 | — | Front Left |
| 1996 | Ford | F-150 | — | Front Left |
Cross-Reference / Replaces These Part Numbers
The AGS-KT60616 is a direct cross-reference for the following replacement brake hose part numbers:
| Brand | Part Number |
|---|---|
| Dorman First Stop | H380299 |
| Raybestos | 45380299 | 4538900 | BH380299 | BH38900 |
| AC Delco | 18J1125 | 18J849 |
| Sunsong | 2201087 | 2201112 |
| Wagner | BH124724 | BH132319 | F124724 | F132319 |
| Centric Parts | 150.65069 | 150.65091 |
| Bendix | 78171 | 78207 |
| NAPA BRAKES | UP380299 |
| ARI | 87-42069 | 87-42091 | 87-85069 | 87-85091 |
| Aimco | B916624 | B917695 |
| Alltech Automotive | 610083 |
| Autospecialty | HB-85069 | HB-85091 |
| Coni-Seal | BH178171 | BH178207 |
| Ford | F0TZ2078E | F4TZ2078D |
| Norflex | NF380299 | NF38900 |
Specifications
| Hose Material | EPDM |
|---|---|
| Outer Sleeve Material | EPDM |
| Inside Diameter (in) | 1/8 |
| Outside Diameter (mm) | 10.5 |
| Overall Length (in) | 20 |
| Axis 1 Length (in) | 15.63 |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size (mm) | 9.6 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Crush Washers Included | Yes |
| Mounting Bracket Included | No |
| DOT Approved | Yes |
About AGS Company
AGS Company Automotive Solutions has been a trusted name in the automotive aftermarket for over 70 years, manufacturing high-quality brake, fluid, and lubrication products engineered in the USA. Every AGS rubber brake hose is designed to meet or exceed OE specifications, rigorously tested, and backed by industry-leading quality assurance. Choose AGS for confident installation, dependable performance, and long service life.
⚠ California Proposition 65 Warning: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
